PHOTON
System input power (W) : 100 - 50 - 200 - 150
Cut Size(mm) : 80.5 - 81
 50W |  100W |  150W |  200W | |
|---|---|---|---|---|
| System input power (W) | 50 | 100 | 150 | 200 |
| Input voltage range (V-AC/Hz) | 100~277V/50Hz | 100~277V/50Hz | 100~277V/50Hz | 100~277V/50Hz |
| Power factor | 0.9 | 0.9 | 0.9 | 0.9 |
| LED module type | Self-ballasted | Self-ballasted | Self-ballasted | Self-ballasted |
| LED module structure | Integrated | Integrated | Integrated | Integrated |
| Nominal luminous Flux (Lm) | 6420 | 11550 | 17430 | 22390 |
| Nominal system luminous efficiency (Lm/W) | 128 | 115 | 116 | 112 |
| Number of LEDs (pcs) | 60 | 96 | 192 | 144 |
| Nominal color temperature (°K) | 5500~6500 | 5500~6500 | 5500~6500 | 5500~6500 |
| Color rendering index (Ra) | 75 | 75 | 75 | 75 |
| Light distribution angle (degrees) | 117 | 89 | 112 | 111 |
| Cut Size(mm) | 80.5 | 81 | 81 | 81 |

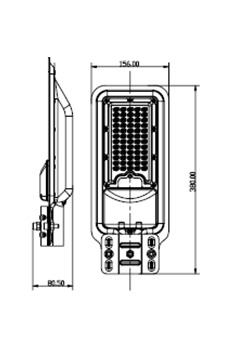

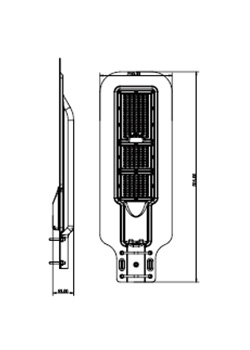

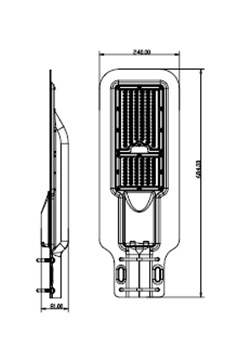

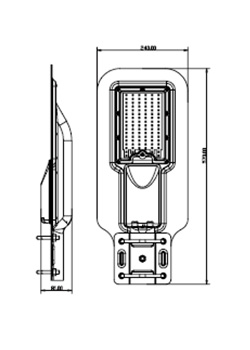

| Dimension(mm) | 380*156 | 570*240 | 684*240 | 816*280 |
| Material (PC) | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Ingress Protection (IP) | 65 | 65 | 65 | 65 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Maximum junction temperature LED (°C) | 70 | 70 | 70 | 70 |
| Ambient temperature range (°C) | -20 ~ +60 | -20 ~ +60 | -20 ~ +60 | -20 ~ +60 |
| Product Code | RS2 | RS3 | RS4 | RS5 |
100w , 10500 lm , Size 570.240.81 , IP 65 , SMD
150w , 15840 lm , Size 684.240.81 , IP 65 , SMD
200w , 20350 lm , Size 816.280.81 , IP65 , SMD
