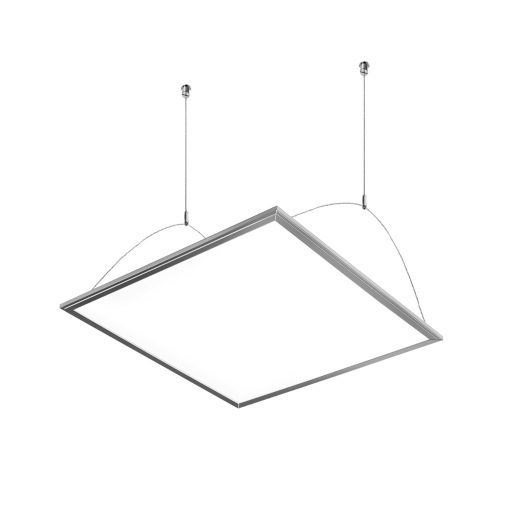

ALMAS ( MBP )

System input power (W) : 40 - 60

Light Source : -

Cut Size(mm) : 295*595 - 595*595

View Full Specifications
40W60W
System input power (W) 4060
Input voltage range (V-AC/Hz) 220~240/50~60220~240/50~60
Power factor 0.870.97
LED module type --
LED module structure --
Light Source --
Nominal luminous Flux (Lm) 38005700
Nominal system luminous efficiency (Lm/W) --
Number of LEDs (pcs) --
Nominal color temperature (°K) --
Color rendering index (Ra) 8080
Lumen maintenance factor at 1000 hours 98%98%
Lumen maintenance group at 6000 hours AA
Cut Size(mm) 295*595595*595
Dimension(mm) 300*600*12600*600*12
Light distribution angle (degrees) 120120
Material (PC) --
Ingress Protection (IP) 4242
Weight (Kg) --
Rated life in ambient temperature 25 °C 5000(hrs)5000(hrs)
Rated life in ambient temperature 45 °C 5000(hrs)5000(hrs)
Maximum junction temperature LED (°C) --
Humidity range (%) 10~90RH10~90RH
Ambient temperature range (°C) -20~ +50-20~ +50
Product Code MBP3640MBP6660
