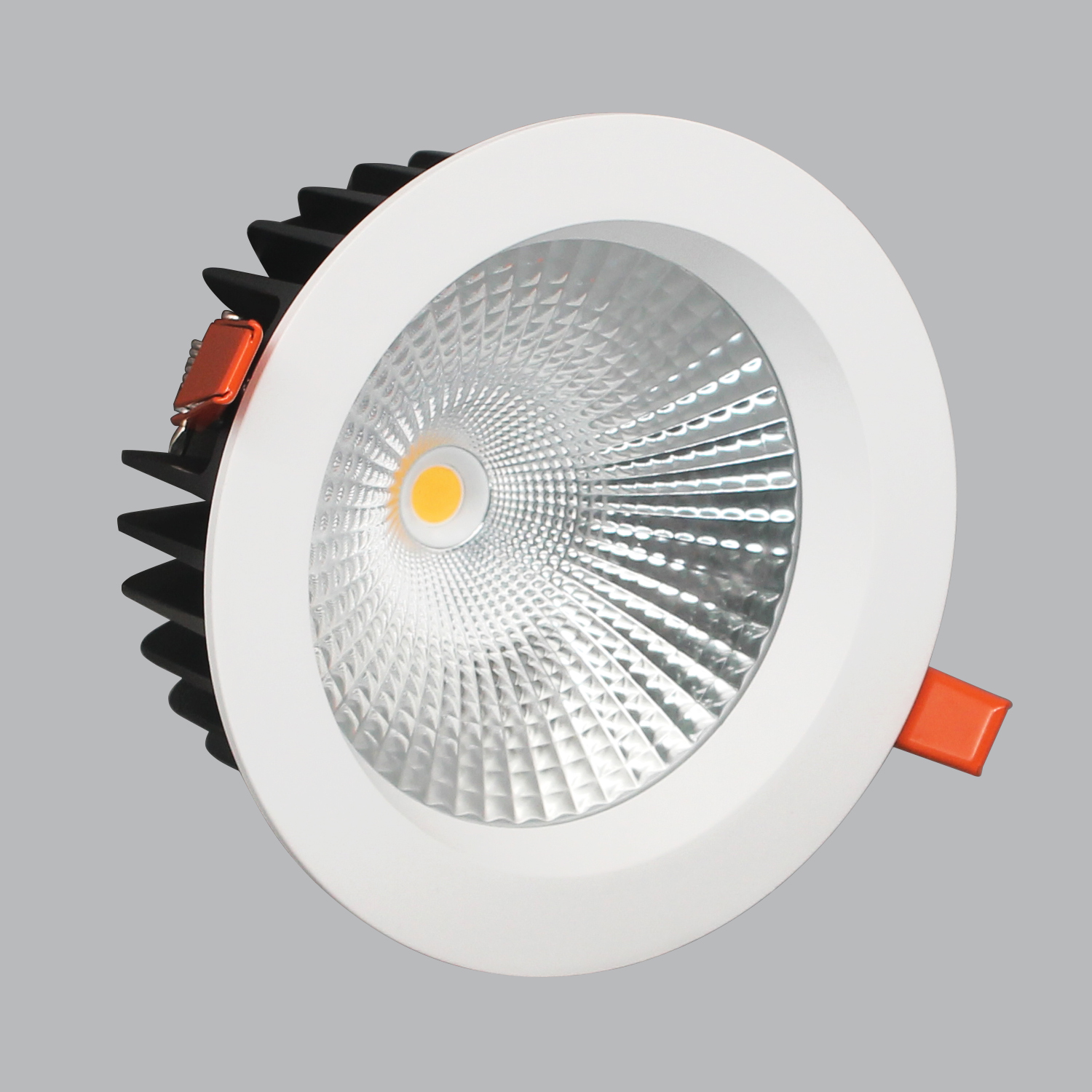

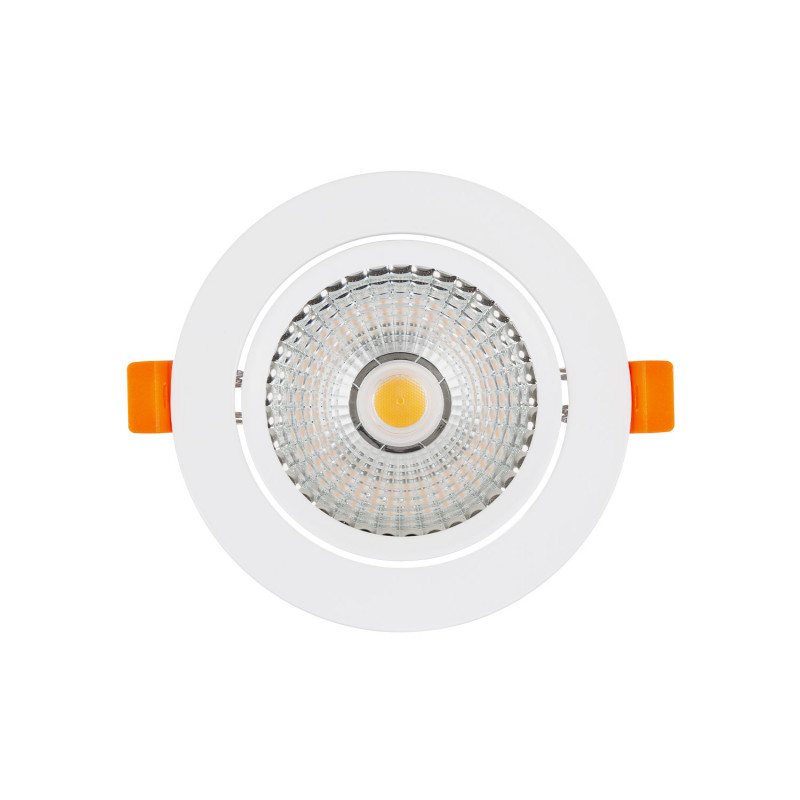

QUARTZ (MBD018)

System input power (W) : 15 - 30 - 40 - 10 - 5 - 20

Light Source : COB LED

Cut Size(mm) : 100 - 200 - 80 - 130 - 160

View Full Specifications
5W10W15W20W30W40W
System input power (W) 51015203040
Input voltage range (V-AC/Hz) 85~265/50~6085~265/50~6085~265/50~6085~265/50~6085~265/50~6085~265/50~60
Power factor 0.50.50.50.50.90.9
LED module type With separate ballastWith separate ballastWith separate ballastWith separate ballastWith separate ballastWith separate ballast
LED module structure IntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
Light Source COB LEDCOB LEDCOB LEDCOB LEDCOB LEDCOB LED
Nominal luminous Flux (Lm) 4008001500160024003200
Nominal system luminous efficiency (Lm/W) 8080100808080
Number of LEDs (pcs) 111111
Nominal color temperature (°K) 2800-62002800-62002800-62002800-62002800-62002800-6200
Color rendering index (Ra) 808080808080
Lumen maintenance factor at 1000 hours 95%95%95%95%95%95%
Lumen maintenance group at 6000 hours AAAAAA
Light distribution angle (degrees) 454545454545
Cut Size(mm) 80100100130160200
Dimension(mm) 100*47130*70130*70160*92190*95230*115
Material (PC) AluminumAluminumAluminumAluminumAluminumAluminum
Ingress Protection (IP) 202020202020
Weight (Kg) 0.10.230.230.470.590.74
Rated life in ambient temperature 25 °C 50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)
Rated life in ambient temperature 45 °C 35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)
Maximum junction temperature LED (°C) 120120120120120120
Humidity range (%) 10~90RH10~90RH10~90RH10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45
Product Code MB005 D018 NMB010 D018 NMB015 D018 NMB020 D018 NMB030 D018 NMB040 D018 N

MBD018 5w

5w , 400 lm , beam angle 60 , Cut size 80, Size 100.65



MBD018 10w

10w , 800 lm , Beam angle 60 , cut size 100 , Size 112.65



MBD018 15w

15w , 1350 lm , color temp 4000k , cut size 100 , size 130.70



MBD018 20w

20w  , 1800 lm , beam angle 60 , cut size 160 , size 180.95   Color Temp : 3000K

20w , 1800 lm , beam angle 60 , cut size 130 , size 160.93  Color Temp : 6000K



MBD018 30w

30w , 2700 lm , beam angle 60 , cut size 200 , size 220.105  Color Temp : 3000K

30w , 2700 lm , beam angle 60 , Cut size 160 , Size 190.95   Color Temp : 6000K



MBD018 40w

40w , 3600 lm , beam angle 60 , cut size 200 , Size 230.115



Color Temp : 3000K , 6000K



Test Report 5wDownload Now
Test Report 10wDownload Now
Test Report 20wDownload Now
Test Report 30wDownload Now
SpecificationDownload Now
