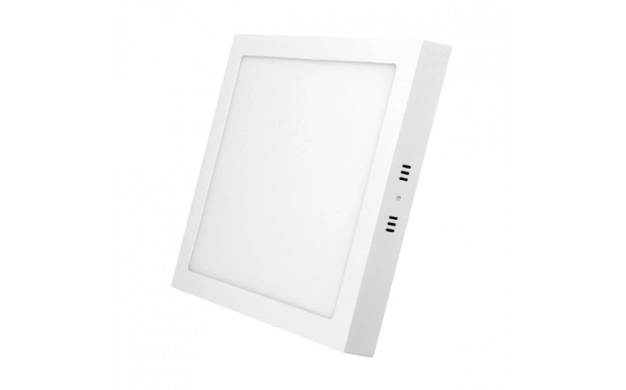

MAIN ( P010A SERIES Surface Panel )

System input power (W) : 8 - 18 - 36 - 54 - 24 - 12

Light Source : SMD

View Full Specifications
24W18W12W8W36W54W
System input power (W) 24181283654
Input voltage range (V-AC/Hz) 85~265/50~6085~265/50~6085~265/50~6085~265/50~6085~265/50~6085~265/50~60
Power factor 0.740.720.680.610.780.86
LED module type With separate ballastWith separate ballastWith separate ballastWith separate ballastWith separate ballastWith separate ballast
LED module structure IntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
Light Source SMDSMDSMDSMDSMDSMD
Nominal luminous Flux (Lm) 20401660112576032604850
Nominal system luminous efficiency (Lm/W) 100100100100100100
Number of LEDs (pcs) 240180120120240276
Nominal color temperature (°K) 2800-62002800-62002800-62002800-62002800-62002800-6200
Color rendering index (Ra) 807575758080
Lumen maintenance factor at 1000 hours 95%95%95%95%95%95%
Lumen maintenance group at 6000 hours AAAAAA
Light distribution angle (degrees) 120120120120120120
Dimension(mm) 300*300*40190*190*25140*140*2590*90*25400*400*40600*600*40
Material (PC) AluminumAluminumAluminumAluminumAluminumAluminum
Ingress Protection (IP) 202020202020
Weight (Kg) 1.81.041.043.713.5
Rated life in ambient temperature 25 °C 50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)
Rated life in ambient temperature 45 °C 35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)
Maximum junction temperature LED (°C) 110110110110110110
Humidity range (%) 10~90RH10~90RH10~90RH10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45
Product Code MBP010A3030MB22SFSQMB15SFSQMB08SFSQMBP010A4040MBP010A6060

8w , 600lm , Beam nagle 120 , size 92.92.24

15w , 1050 lm , Beam angle 120 , Size 140.140.24

24w , 1920 lm , Beam angle , size 300.300.40

36w , 2880 lm , Beam angle , beam angle 120 , size 400.400.40

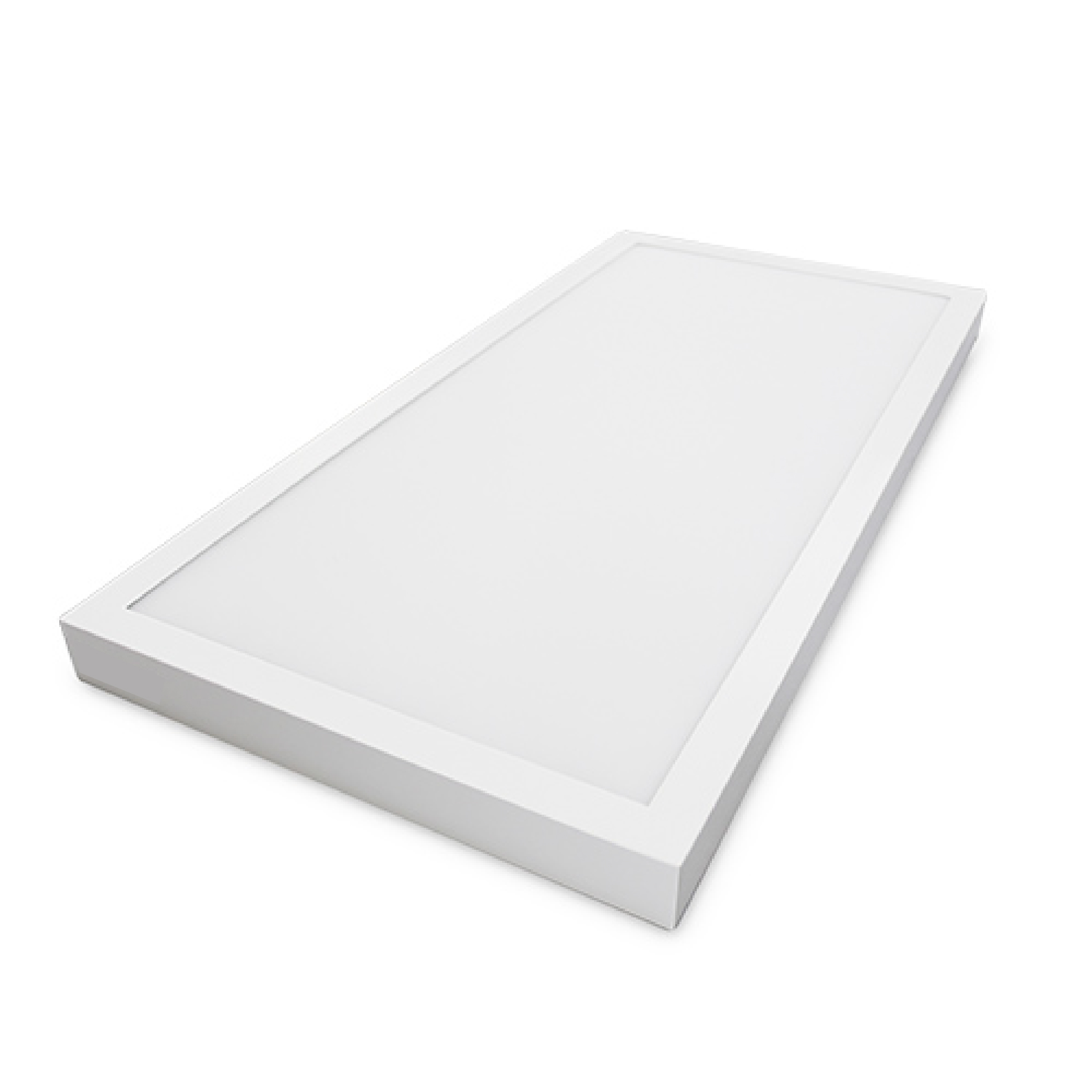

36w , 2880 lm , beam angle 120 , size 600.300.40

54w , 4320 lm , beam angle 120 , Sizee 1200.300.40

54w , 3840 lm , beam angle 120 , Size 1200.300.40
