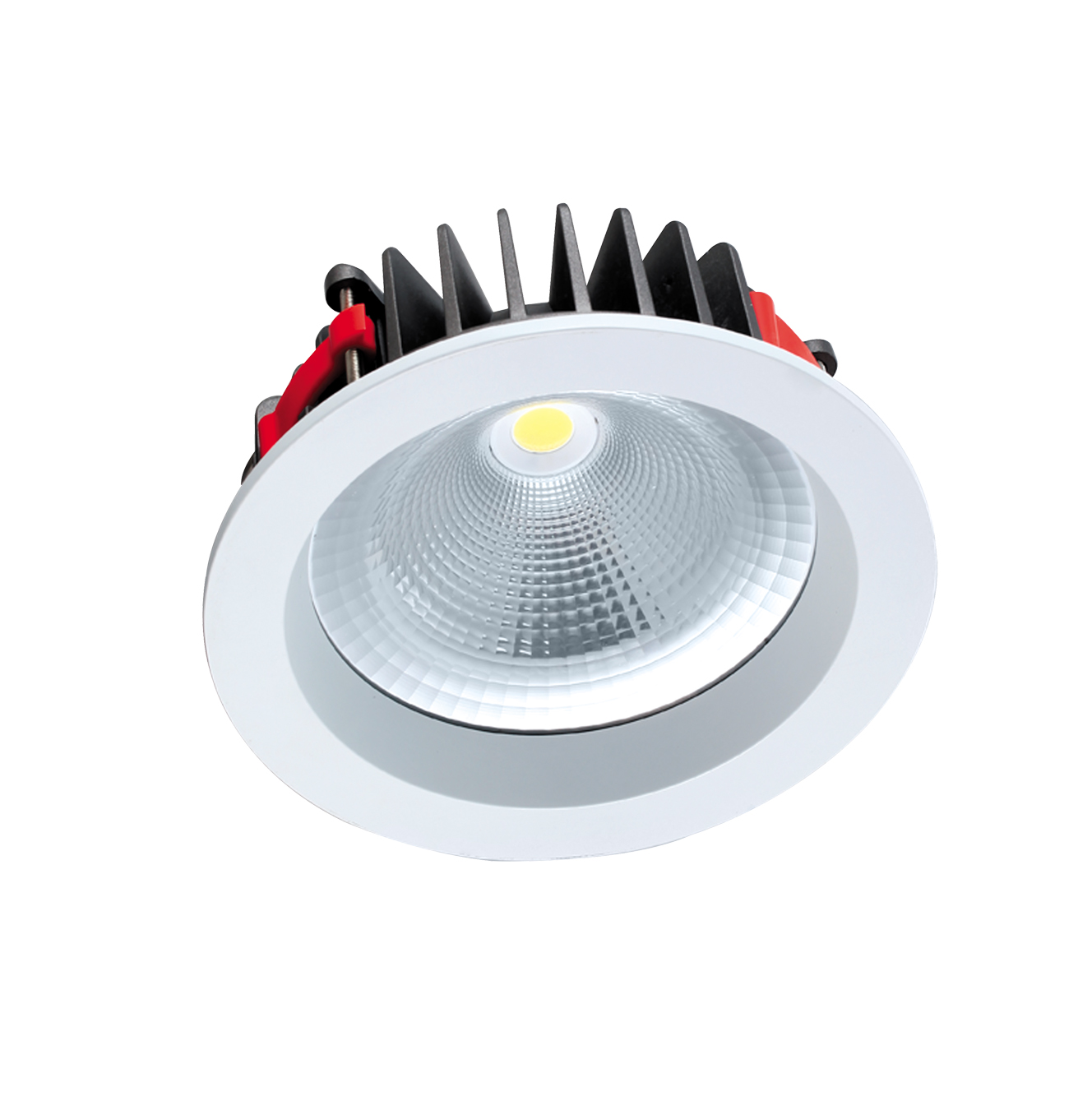

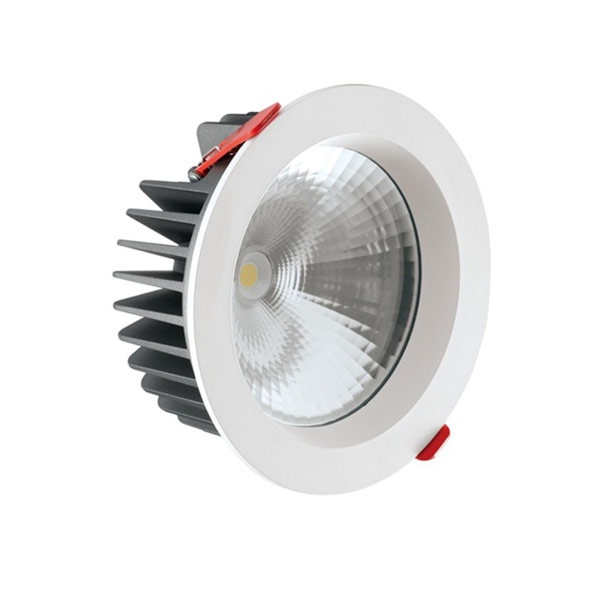

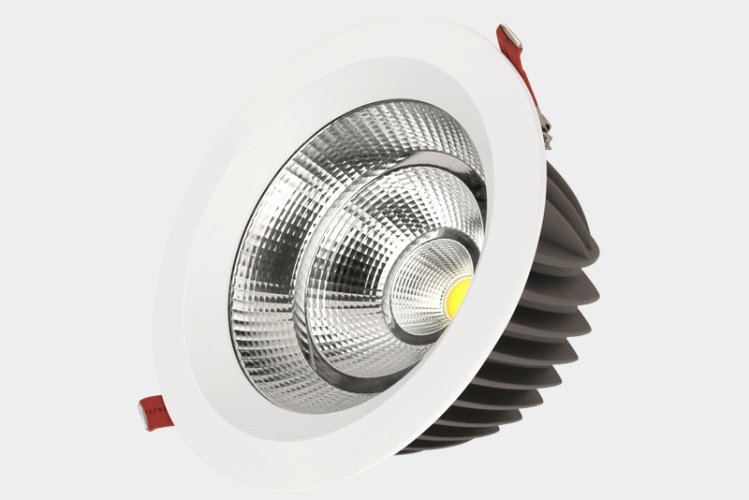

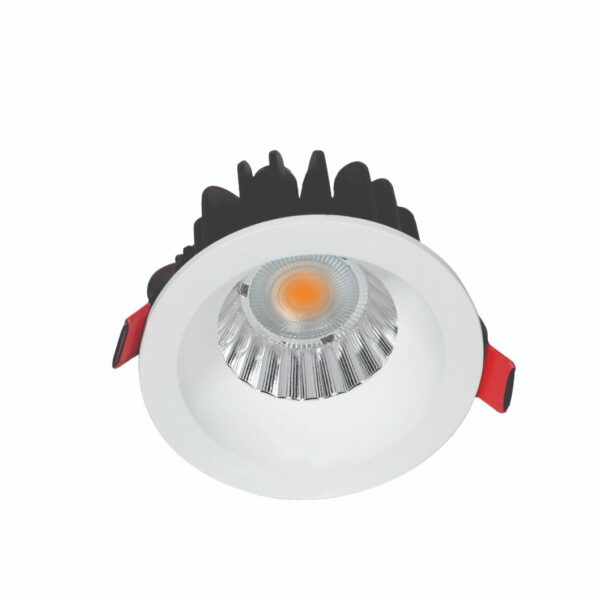

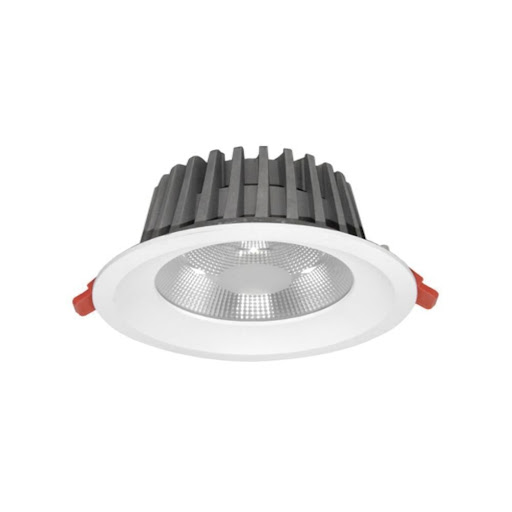

PARIS (MBD016)
Interior LED LightSystem input power (W) : 8 - 15 - 30 - 40 - 80
Light Source : COB LED
Cut Size(mm) : 70 - 100 - 150 - 180 - 200
 8W |  15W |  30W |  40W | 80W | |
|---|---|---|---|---|---|
| System input power (W) | 8 | 15 | 30 | 40 | 80 |
| Input voltage range (V-AC/Hz) | 85~265/50~60 | 85~265/50~60 | 85~265/50~60 | 85~265/50~60 | 85~265/50~60 |
| Power factor | 0.5 | 0.5 | 0.9 | 0.9 | 0.9 |
| LED module type | With separate ballast | With separate ballast | With separate ballast | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated | Integrated | Integrated | Integrated |
| Product Code | MBD016 8w | MBD016 15W | MBD016 30W | MBD016 40W | MBD016 80W |
| Light Source | COB LED | COB LED | COB LED | COB LED | COB LED |
| Nominal luminous Flux (Lm) | 650 | 1200 | 2400 | 3200 | 6800-7600 |
| Nominal system luminous efficiency (Lm/W) | 81 | 80 | 80 | 80 | 85-95 |
| Number of LEDs (pcs) | 1 | 1 | 1 | 1 | 1 |
| Nominal color temperature (°K) | 2800-6200 | 2800-6200 | 2800-6200 | 2800-6200 | 2800-6200 |
| Color rendering index (Ra) | 80 | 80 | 80 | 80 | 80 |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A | A | A |
| Light distribution angle (degrees) | 24 | 24 | 24 | 24 | 24 |
| Cut Size(mm) | 70 | 100 | 150 | 180 | 200 |
| Dimension(mm) | 100*60 | 120*72 | 170*86 | 200*86 | 230*115 |
| Material (PC) | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | 55 | 55 | 55 | 55 | 55 |
| Weight (Kg) | 0.14 | 0.26 | 0.57 | 0.8 | 2 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) |
| Maximum junction temperature LED (°C) | 120 | 120 | 120 | 120 | 120 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
IP 55
Suitable for dusty and humid situation
MBD016 8w
8w , 750 lm , cust size 75 , Size 100.65 , IP55
MBD016 15w
15w , 1450 lm, Cut size 100 , Size 120.75 , IP55
MBD016 30w
30w , 2850 lm , Cut size 150 , Size 170.88 , IP55
MBD016 40w
40w , 3800 lm , Cut size 180 , Size 200.88 , IP55
MBD016 80w
80w , 7600 lm , Cut size 200 , Size 230.120 , IP55
