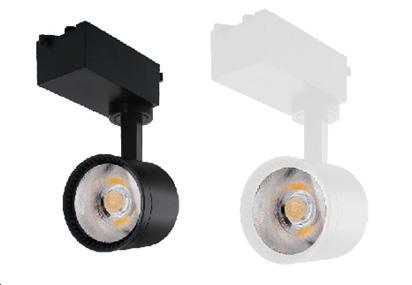

ATLAS ( MBDGSD )

System input power (W) : 30 - 40 - 20 - 50

Light Source : COB

View Full Specifications
ATLAS ( MBDGSD )
20W30W 40W 50W
System input power (W) 20304050
Input voltage range (V-AC/Hz) AC85-160VAC85-160VAC85-160VAC85-160V
Power factor 0.890.910.920.95
LED module type With separate ballastWith separate ballastWith separate ballastWith separate ballast
LED module structure IntegratedIntegratedIntegratedIntegrated
Light Source COBCOBCOBCOB
Nominal luminous Flux (Lm) 1200180025003100
Nominal system luminous efficiency (Lm/W) 60687575
Number of LEDs (pcs) 1111
Nominal color temperature (°K) 3000-60003000-60003000-60003000-6000
Color rendering index (Ra) 85858585
Lumen maintenance factor at 1000 hours 98%98%98%98%
Lumen maintenance group at 6000 hours AAAA
Light distribution angle (degrees) 24242424
Ingress Protection (IP)
Material (PC) Aluminum+PCAluminum+PCAluminum+PCAluminum+PC
Dimension(mm) 129*94*206157*94*206182*94*206182*94*206
Weight (Kg) 0.8350.8350.8350.835
Rated life in ambient temperature 25 °C 50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)
Rated life in ambient temperature 45 °C 35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)
Humidity range (%) 10~90RH10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45
Product Code MBDGSD-15020AMBDGSD-15030AMBDGSD-18040AMBDGSD-18050A
