ARVAND ( STRIP MBSMD5050 60P )

System input power (W) : 8.5W±10%/M

Light Source : SMD5050

View Full Specifications
ARVAND ( STRIP MBSMD5050 60P )
8.5W±10%/M 8.5W±10%/M 8.5W±10%/M 8.5W±10%/M 8.5W±10%/M 8.5W±10%/M 8.5W±10%/M
System input power (W) 8.5W±10%/M8.5W±10%/M8.5W±10%/M8.5W±10%/M8.5W±10%/M8.5W±10%/M8.5W±10%/M
Input voltage range (V-AC/Hz) DC12VDC12VDC12VDC12VDC12VDC12VDC12V
Power factor 0.90.90.90.90.90.90.9
LED module type SMDSMDSMDSMDSMDSMDSMD
LED module structure 3 chip3 chip3 chip3 chip3 chip3 chip3 chip
Light Source SMD5050SMD5050SMD5050SMD5050SMD5050SMD5050SMD5050
Nominal luminous Flux (Lm) 400LM/M400LM/M400LM/MN/AN/AN/AN/A
Nominal system luminous efficiency (Lm/W) 46LM/W46LM/W46LM/WN/AN/AN/AN/A
Number of LEDs (pcs) 60led/M60led/M60led/M60led/M60led/M60led/M60led/M
Nominal color temperature (°K) 2700±200K4000±200K6500±500KREDYELLOWGREENBLUE
Color rendering index (Ra) 707070N/AN/AN/AN/A
Lumen maintenance factor at 1000 hours 98%98%98%98%98%98%98%
Lumen maintenance group at 6000 hours AAAAAAA
Light distribution angle (degrees) 120120120120120120120
Dimension(mm) 10*310*310*310*310*310*310*3
Material (PC) PU glue coverPU glue coverPU glue coverPU glue coverPU glue coverPU glue coverPU glue cover
Ingress Protection (IP) IP65IP65IP65IP65IP65IP65IP65
Weight (Kg) 0.2350.2350.2350.2350.2350.2350.235
Rated life in ambient temperature 25 °C 30000 (hrs)30000 (hrs)30000 (hrs)30000 (hrs)30000 (hrs)30000 (hrs)30000 (hrs)
Rated life in ambient temperature 45 °C 20000 (hrs)20000 (hrs)20000 (hrs)20000 (hrs)20000 (hrs)20000 (hrs)20000 (hrs)
Humidity range (%) 10~90RH10~90RH10~90RH10~90RH10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45
Product Code MB-5050-60P-12VMB-5050-60P-12VMB-5050-60P-12VMB-5050-60P-12VMB-5050-60P-12VMB-5050-60P-12VMB-5050-60P-12V

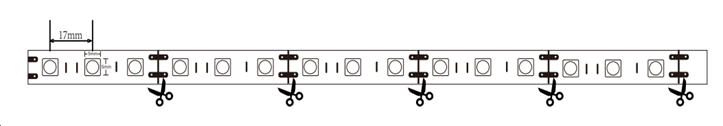

Chip 5050 , 60 LED per meter , cut unit 3 chips , 5 meter reel

Colors : WW , DL , Green , Bkue , Red , Orange
