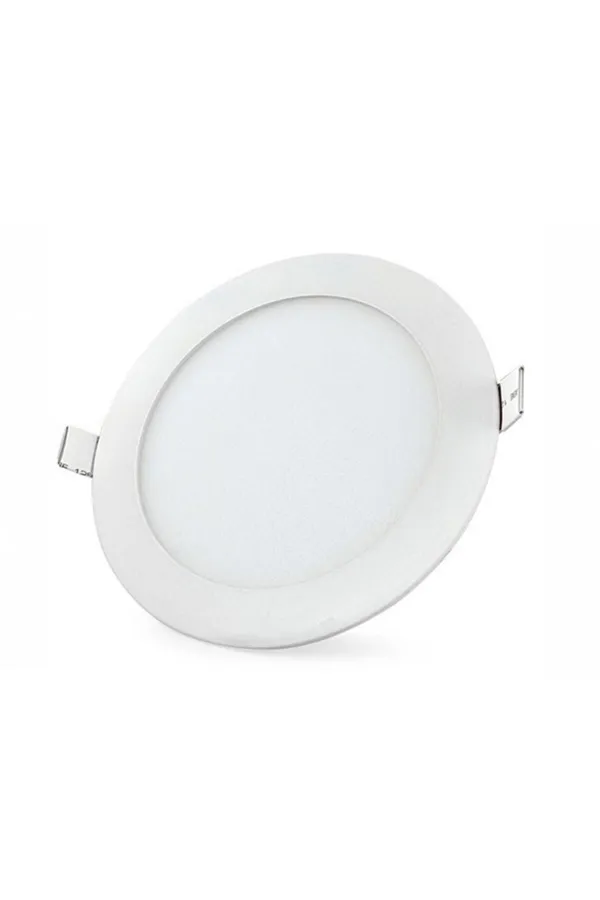

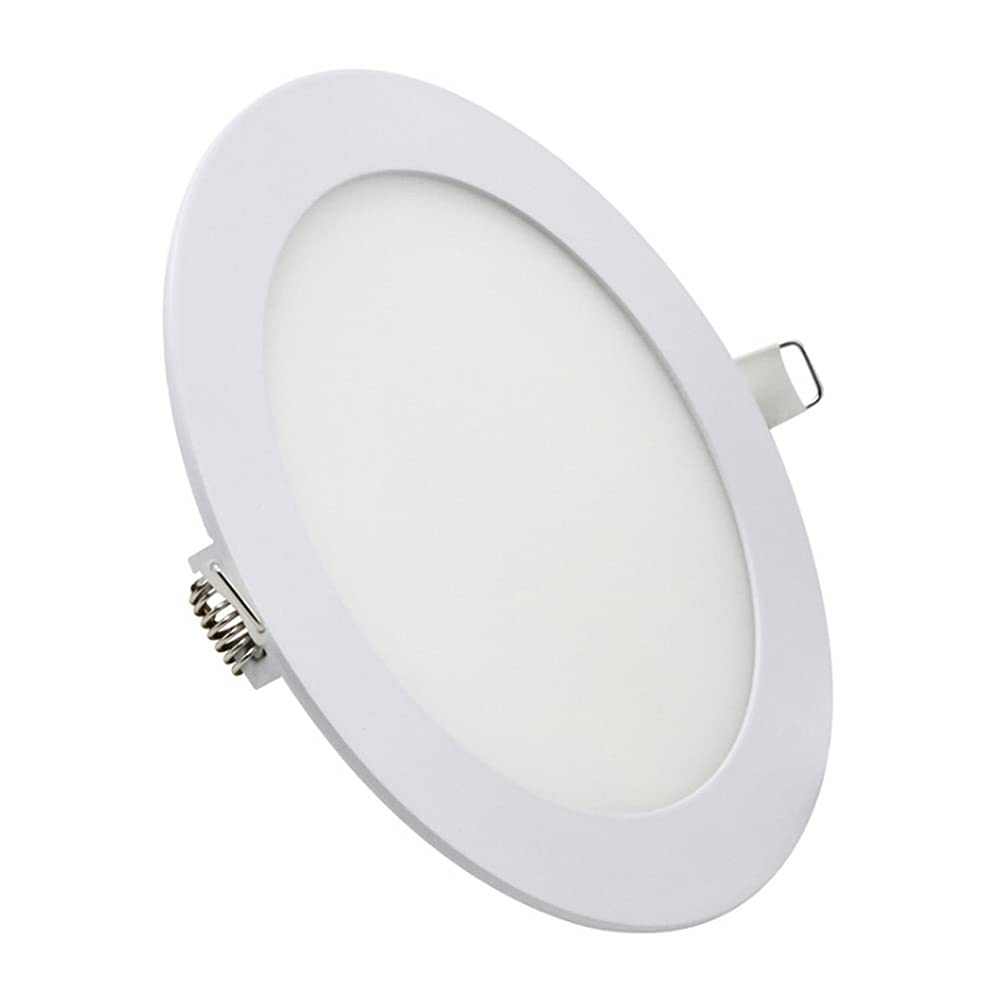

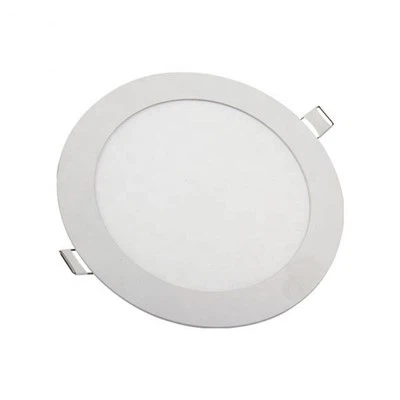

RAYAN (MB 32ERD/026SL)
System input power (W) : 18w - 3w - 24w - 6w - 12w
Light Source : SMD2835 LED
 6W |  12W |  18W |  6W |  12W |  18W | |
|---|---|---|---|---|---|---|
| System input power (W) | 6 | 12 | 18 | 6 | 12 | 18 |
| Input voltage range (V-AC/Hz) | 220-240/50-60 | 220-240/50-60 | 220-240/50-60 | 220-240/50-60 | 220-240/50-60 | 220-240/50-60 |
| Power factor | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| LED module type | With separate ballast | With separate ballast | With separate ballast | With separate ballast | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated |
| Light Source | SMD2835 LED | SMD2835 LED | SMD2835 LED | SMD2835 LED | SMD2835 LED | SMD2835 LED |
| Nominal luminous Flux (Lm) | 420 | 840 | 1260 | 420 | 840 | 1260 |
| Nominal system luminous efficiency (Lm/W) | 70 | 70 | 70 | 70 | 70 | 70 |
| Number of LEDs (pcs) | 30 | 60 | 90 | 30 | 60 | 90 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 70 | 70 | 70 | 70 | 70 | 70 |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A | A | A | A |
| Light distribution angle (degrees) | 120 | 120 | 120 | 120 | 120 | 120 |
| Dimension(mm) | 92*H24 | 140*H24 | 192*H24 | 92*92*H24 | 140*140*H24 | 192*192*H24 |
| Material (PC) | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | 20 | 20 | 20 | 20 | 20 | 20 |
| Weight (Kg) | 0.15 | 0.3 | 0.56 | 0.15 | 0.3 | 0.56 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 30000(hrs) | 30000(hrs) | 30000(hrs) | 30000(hrs) | 30000(hrs) | 30000(hrs) |
| Maximum junction temperature LED (°C) | 125 | 125 | 125 | 125 | 125 | 125 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | MB006-32E SF RD | MB012-32E SF RD | MB018-32E SF RD | MB006-32E SF SQ | MB012-32E SF SQ | MB018-32E SF SQ |
Back light
MB003 32ERD
3w , 230 lm , Beam angle 120 , cut size 80 , Size 90.12/5
MB026 06SL
6w , 493 lm , Beam angle 120 , cut size 80 , size 108.20
MB026 12SL
12w , 883 lm , Beam angle 120 , cut size 155 , Size 170.20
MB026 18SL
18w , 1486 lm , Beam angle 120 , cut size 205 , size 220.20
MB026 24SL
24w , 1968 lm , beam angle 120 , cut size 28 , size 300.20
