SALIX (MB 10RD)

System input power (W) : 30 - 40 - 10 - 20

Light Source : COB LED

Cut Size(mm) : 130 - 155 - 95 - 195

View Full Specifications
10W20W30W40W
System input power (W) 10203040
Input voltage range (V-AC/Hz) 85~265/50~6085~265/50~6085~265/50~6085~265/50~60
Power factor 0.50.50.50.5
LED module type With separate ballastWith separate ballastWith separate ballastWith separate ballast
LED module structure IntegratedIntegratedIntegratedIntegrated
Light Source COB LEDCOB LEDCOB LEDCOB LED
Nominal luminous Flux (Lm) 700140021002800
Nominal system luminous efficiency (Lm/W) 70707070
Number of LEDs (pcs) 1111
Nominal color temperature (°K) 3000-60003000-60003000-60003000-6000
Color rendering index (Ra) 70707070
Lumen maintenance factor at 1000 hours 98%98%98%98%
Lumen maintenance group at 6000 hours AAAA
Light distribution angle (degrees) 60606060
Cut Size(mm) 95130155195

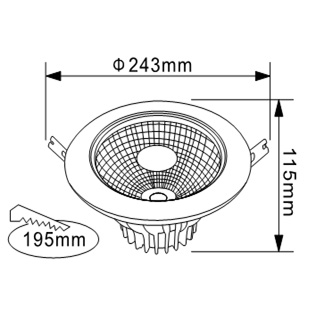

Dimension(mm) 110*65150*75180*85223*115
Material (PC) AluminumAluminumAluminumAluminum
Ingress Protection (IP) 20202020
Weight (Kg) 0.340.550.831.11
Rated life in ambient temperature 25 °C 50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)
Rated life in ambient temperature 45 °C 30000(hrs)30000(hrs)30000(hrs)30000(hrs)
Maximum junction temperature LED (°C) 125125125125
Humidity range (%) 10~90RH10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45
Product Code MB010-10 RD SNMB020-10 RD SNMB030-10 RD SNMB040-10 RD SN

White and Steel Body

MB010 10RD

10w , 700lm , beam angle 60 , Cut size 95 , Size 110.65



MB020 10RD

20w , 1400 lm , beam angle 60 , cut size 130 , Size 150.75



MB030 10RD

30w , 2100 lm , beam angle 60 , Cut size 160 , Size 180.85



MB040 10RD

40w , 2800 lm , beam angle 60 , Cut size 195 , Size 223.85

Test Report 10wDownload Now
Test Report 20w Download Now
Test Report 30wDownload Now
Test Report 40wDownload Now
Specification Download Now
