BATIS (MB 37RD)

System input power (W) : 3 - 6

Light Source : COB LED

Cut Size(mm) : 50 - 65

View Full Specifications
3W6W
System input power (W) 36
Input voltage range (V-AC/Hz) 220-240/50-60220-240/50-60
Power factor 0.50.5
LED module type With separate ballastWith separate ballast
LED module structure IntegratedIntegrated
Light Source COB LEDCOB LED
Nominal luminous Flux (Lm) 210420
Nominal system luminous efficiency (Lm/W) 7070
Number of LEDs (pcs) 11
Nominal color temperature (°K) 3000-60003000-6000
Color rendering index (Ra) 7070
Lumen maintenance factor at 1000 hours 98%98%
Lumen maintenance group at 6000 hours AA
Light distribution angle (degrees) 3845
Cut Size(mm) 5065
Dimension(mm) 70*H4088*H45
Material (PC) AluminumAluminum
Ingress Protection (IP) 2020
Weight (Kg) 0.1260.191
Rated life in ambient temperature 25 °C 50000 (hrs)50000 (hrs)
Rated life in ambient temperature 45 °C 30000(hrs)30000(hrs)
Maximum junction temperature LED (°C) 125125
Humidity range (%) 10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45
Product Code MB003-37 RDMB006-37 RD

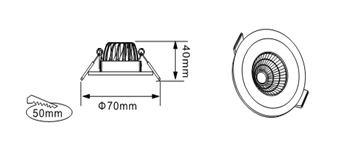

MB003 37RD

3w , 210 lm , Cut size 52 , Size 67.42 , COB

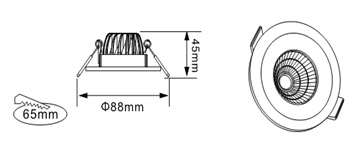

MB006 37RD

6w, 420 lm , Cut size 60 , Size 87.45 , COB



Color Temp : 3000K , 4000K , 6000K



Test Report 3wDownload Now
Test Report 6wDownload Now
Specification Download Now
