 9W |  22W | 42W | |
|---|---|---|---|
| System input power (W) | 9 | 22 | 42 |
| Input voltage range (V-AC/Hz) | AC100-240V/50-60 | AC100-240V/50-60 | AC100-240V/50-60 |
| Power factor | 0.62 | 0.71 | 0.87 |
| LED module type | LED PANEL LIGHT | LED PANEL LIGHT | LED PANEL LIGHT |
| LED module structure | Integrated | Integrated | Integrated |
| Light Source | SMD | SMD | SMD |
| Nominal luminous Flux (Lm) | 720 | 1760 | 3360 |
| Nominal system luminous efficiency (Lm/W) | 85lm/w | 85lm/w | 85lm/w |
| Number of LEDs (pcs) | 46 | 120 | 210 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 75 | 75 | 75 |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A |
| Light distribution angle (degrees) | 120 | 120 | 120 |

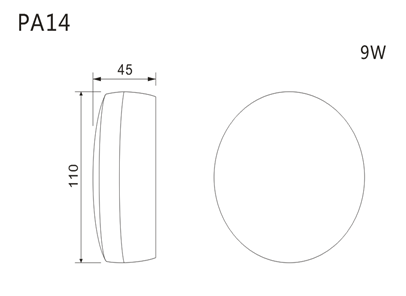

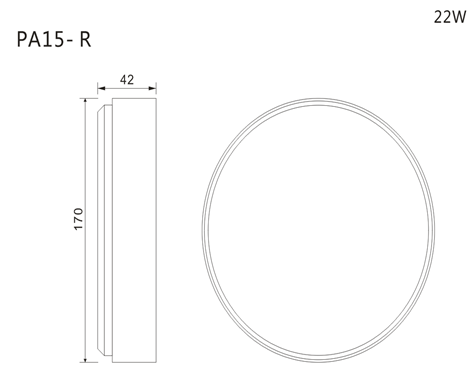

| Dimension(mm) | D:110 H45 | L/W:170 H42 D:170 H42 | L/W:220 H43 D:220 H43 |
| Material (PC) | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | 42 | 42 | 42 |
| Weight (Kg) | 0.12 | 0.55 | 0.7 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) |
| Maximum junction temperature LED (°C) | 125 | 125 | 125 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | 20102009 | 20102022 | 20102042 |
