ROTANO 10025007

System input power (W) : 7

Light Source : BRIDGELUX COB

View Full Specifications
ROTANO 10025007
System input power (W) 7
Input voltage range (V-AC/Hz) 220~240/50~60
Power factor 0.5
LED module type Inner driver
LED module structure COB
Light Source BRIDGELUX COB
Nominal luminous Flux (Lm) 630
Nominal system luminous efficiency (Lm/W) 80
Number of LEDs (pcs) 7
Nominal color temperature (°K) 3000K
Color rendering index (Ra) 80
Lumen maintenance factor at 1000 hours 98%
Lumen maintenance group at 6000 hours A
Light distribution angle (degrees) 60

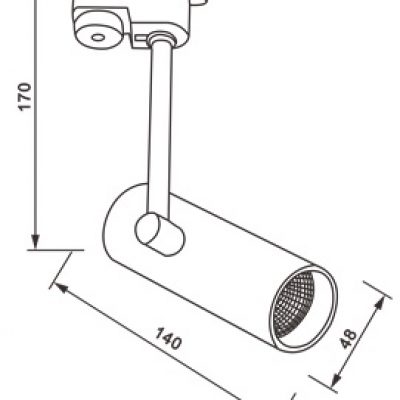

Dimension(mm) 48x140xH170
Material (PC) Aluminum
Ingress Protection (IP) 20
Weight (Kg) 0.46
Rated life in ambient temperature 25 °C 20000(hrs)
Rated life in ambient temperature 45 °C 15000(hrs)
Maximum junction temperature LED (°C) 60
Humidity range (%) 10~90RH
Ambient temperature range (°C) -20~ +50
Product Code MB10025007 BK

7w , Black Body , 630lm , Size 48.140.170
