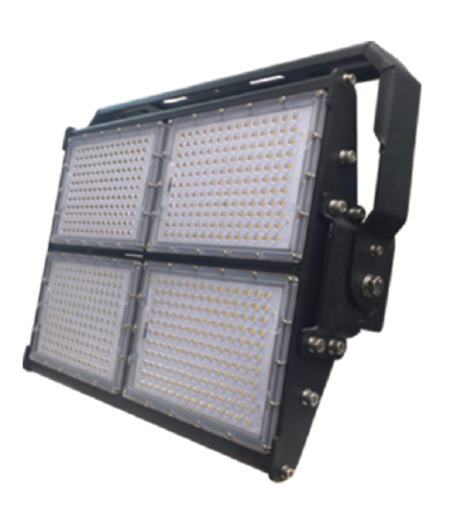

SAHRA
System input power (W) : 240 - 360 - 480 - 600/720 - 960
Light Source : SMD 3030
Cut Size(mm) : -
 240W |  360W |  480W |  600/720W |  960W | |
|---|---|---|---|---|---|
| System input power (W) | 240 | 360 | 480 | 600/720 | 960 |
| Input voltage range (V-AC/Hz) | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| Power factor | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 |
| LED module type | without ballast | without ballast | without ballast | without ballast | without ballast |
| LED module structure | SMD | SMD | SMD | SMD | SMD |
| Light Source | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 |
| Nominal luminous Flux (Lm) | 31200 | 46800 | 62400 | 93600 | 124800 |
| Nominal system luminous efficiency (Lm/W) | 130 | 130 | 130 | 130 | 130 |
| Number of LEDs (pcs) | 308 | 462 | 616 | 924 | 1232 |
| Nominal color temperature (°K) | 3000-6500 | 3000-6500 | 3000-6500 | 3000-6500 | 3000-6500 |
| Color rendering index (Ra) | 80 | 80 | 80 | 80 | 80 |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A | A | A |
| Light distribution angle (degrees) | 30 and 60*100 | 30 and 60*100 | 30 and 60*100 | 30 and 60*100 | 30 and 60*100 |
| Cut Size(mm) | - | - | - | - | - |

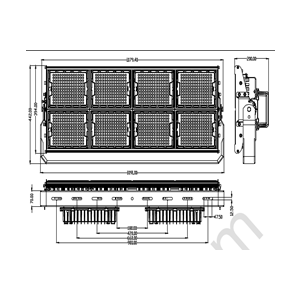

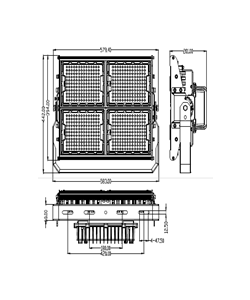

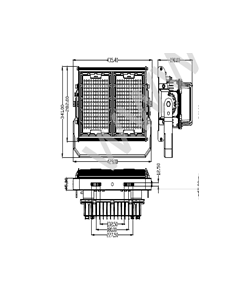

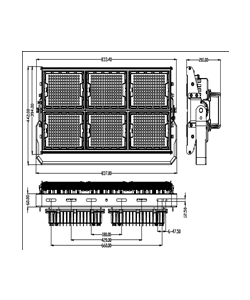

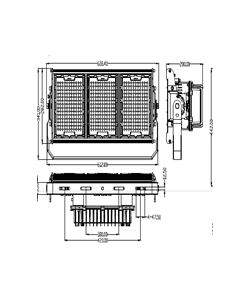

| Dimension(mm) | 435.4*341*190 | 618.4*341*200 | 579.4*442*201 | 833.4*442*200 | 1079.4*442*199 |
| Material (PC) | Pure aliminum+PC lens | Pure aliminum+PC lens | Pure aliminum+PC lens | Pure aliminum+PC lens | Pure aliminum+PC lens |
| Ingress Protection (IP) | 65 | 65 | 65 | 65 | 65 |
| Weight (Kg) | 11.3 | 15 | 19.2 | 30 | 36 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) |
| Maximum junction temperature LED (°C) | 70.3 | 70.3 | 70.3 | 70.3 | 70.3 |
| Humidity range (%) | 10~100HR | 10~100HR | 10~100HR | 10~100HR | 10~100HR |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | - | - | - | - | - |
Stadioum Projectors
240w , 31200 lm , Beam Angle 100 , Size 440.280.190 , IP 65
50162240
480w , 62400 lm , Beam angle 100 , Size 580.400.190 , IP 65
50162480
