CASPIAN (MBGP Panels)
System input power (W) : 40 - 24 - 55 - 48
Light Source : SMD
Cut Size(mm) : 295*595 - 595*595 - 295*1195
| 40W | 24W | 48W | 55W | |
|---|---|---|---|---|
| System input power (W) | 40 | 24 | 48 | 55 |
| Input voltage range (V-AC/Hz) | 85~265/50~60 | 85~265/50~60 | 85~265/50~60 | 85~265/50~60 |
| Power factor | 0.83 | 0.68 | 0.93 | 0.97 |
| LED module type | With separate ballast | With separate ballast | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated | Integrated | Integrated |
| Light Source | SMD | SMD | SMD | SMD |
| Nominal luminous Flux (Lm) | 4400 | 1800 | 4560 | 5500 |
| Nominal system luminous efficiency (Lm/W) | 100 | 100 | 100 | 100 |
| Number of LEDs (pcs) | ||||
| Nominal color temperature (°K) | 2800-6200 | 2800-6200 | 2800-6200 | 2800-6200 |
| Color rendering index (Ra) | 80 | 80 | 80 | 80 |
| Lumen maintenance factor at 1000 hours | 95% | 95% | 95% | 95% |
| Lumen maintenance group at 6000 hours | A | A | A | A |
| Light distribution angle (degrees) | 120 | 120 | 120 | 120 |
| Cut Size(mm) | 595*595 | 295*595 | 295*1195 | 595*595 |
| Dimension(mm) | 600*600*13 | 300*600*13 | 300*1200*13 | 600*600*13 |
| Material (PC) | Aluminum | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | 42 | 42 | 42 | 42 |
| Weight (Kg) | 2.96 | |||
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) |
| Maximum junction temperature LED (°C) | 110 | 110 | 110 | 110 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | MBGP 6640 | MBGP 3624 | MBGP 31240 | MBGP6655 |
MBGP 3624
24w , 1800 lm , beam angle 120 , Size 600.300.15

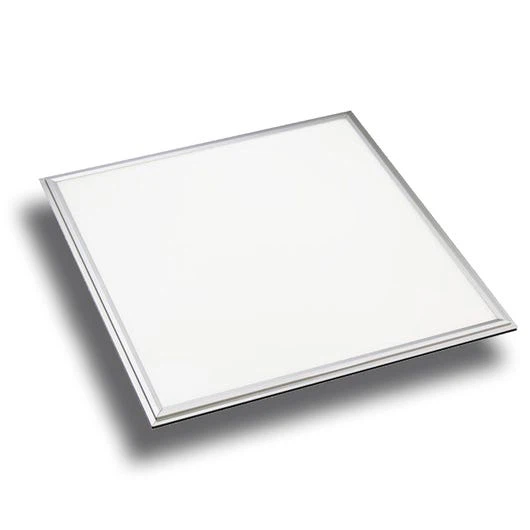

MBGP 6640
40w , 4400 lm , beam angle 120 , Size 600.600.15
MBGP 6655
55w , 5500 lm , beam angle 120 , Size 600.600.15

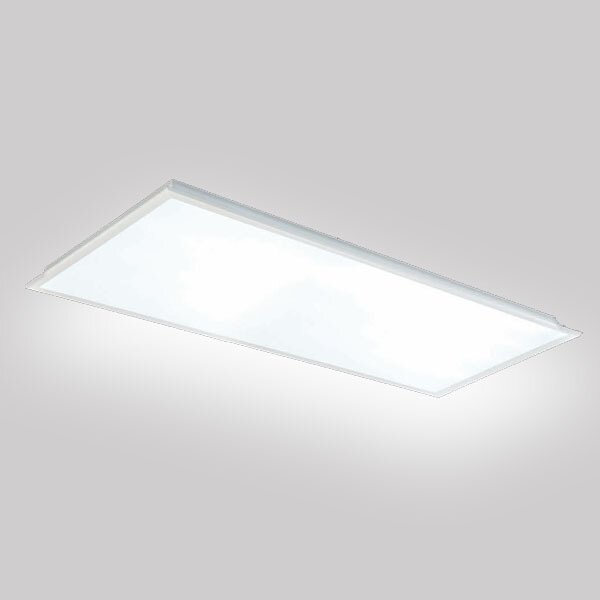

MBGP 31240
48w , 4560 lm , beam angle 120 , Size 1200.300.15
Color Temp : 3000K , 4000K , 6000K
Test Report 48w 30120Download Now
Test Report 55w 6060Download Now
Test Report 40wDownload Now
SpecificationDownload Now
