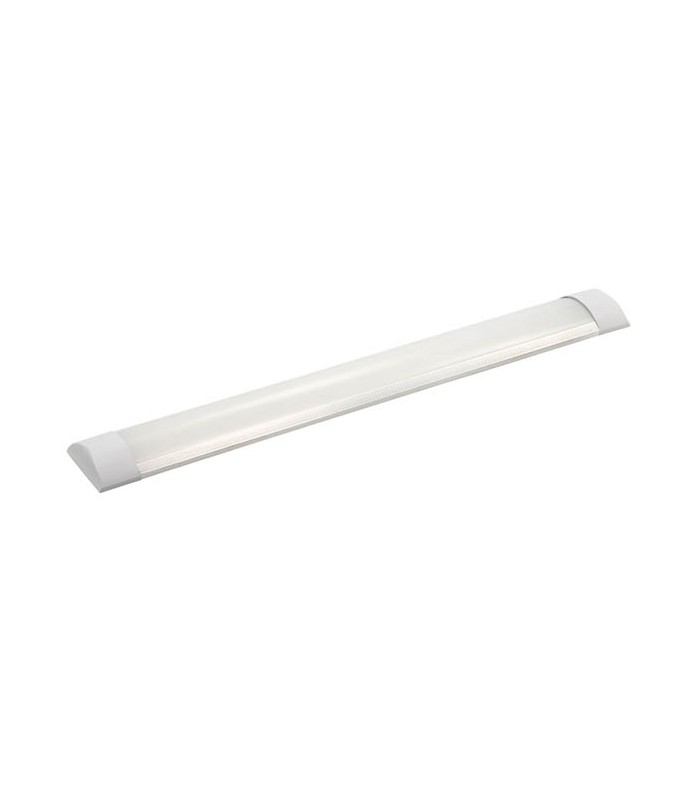

RHINE ( MBXTD )

System input power (W) : 18 - 36

Light Source : SMD

Cut Size(mm) : -

View Full Specifications
RHINE ( MBXTD )
18W36W
System input power (W) 1836
Input voltage range (V-AC/Hz) 220-240/50-60220-240/50-60
Power factor 0.50.5
LED module type With separate ballastWith separate ballast
LED module structure IntegratedIntegrated
Light Source SMDSMD
Nominal luminous Flux (Lm) 14402880
Nominal system luminous efficiency (Lm/W) 8080
Number of LEDs (pcs) 96192
Nominal color temperature (°K) 2800-62002800-6200
Color rendering index (Ra) 8080
Lumen maintenance factor at 1000 hours 95%95%
Lumen maintenance group at 6000 hours AA
Light distribution angle (degrees) 120120
Cut Size(mm) --
Dimension(mm) 600*751200*75
Material (PC) AluminumAluminum
Ingress Protection (IP) 2020
Weight (Kg) 0.260.58
Rated life in ambient temperature 25 °C 50000 (hrs)50000 (hrs)
Rated life in ambient temperature 45 °C 35000 (hrs)35000 (hrs)
Maximum junction temperature LED (°C) 110110
Humidity range (%) 10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45
Product Code MBXTD-600AMBXTD-1200A

18w , 1500 lm , Beam angle 120 , Size 600.75.25

MBXTD 600A



36w , 3000 lm , Beam angle 120 , Size 1200.75.25

MBXTD 1200A
