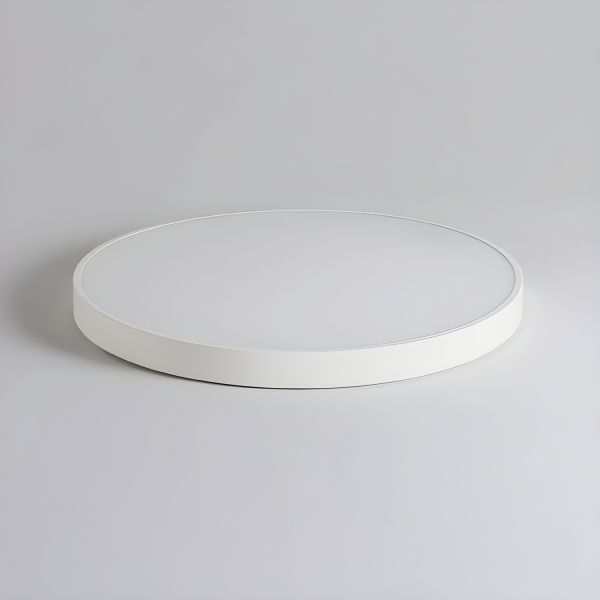

RUBY ( MB SFRD )

System input power (W) : 8 - 15 - 36 - 54 - 22

Light Source : SMD

View Full Specifications
54W36W22W15W8W
System input power (W) 543622158
Input voltage range (V-AC/Hz) 85~265/50~6085~265/50~6085~265/50~6085~265/50~6085~265/50~60
Power factor 0.860.780.750.710.63
LED module type With separate ballastWith separate ballastWith separate ballastWith separate ballastWith separate ballast
LED module structure IntegratedIntegratedIntegratedIntegratedIntegrated
Light Source SMDSMDSMDSMDSMD
Nominal luminous Flux (Lm) 32603260326032603260
Nominal system luminous efficiency (Lm/W) 100100100100100
Number of LEDs (pcs) 240240240240240
Nominal color temperature (°K) 2800-62002800-62002800-62002800-62002800-6200
Color rendering index (Ra) 8080808080
Lumen maintenance factor at 1000 hours 95%95%95%95%95%
Lumen maintenance group at 6000 hours AAAAA
Light distribution angle (degrees) 120120120120120
Dimension(mm) 600*40400*40190*25140*2590*25
Material (PC) AluminumAluminumAluminumAluminumAluminum
Ingress Protection (IP) 4242424242
Weight (Kg) 3.63.63.63.63.6
Rated life in ambient temperature 25 °C 50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)
Rated life in ambient temperature 45 °C 35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)35000 (hrs)
Maximum junction temperature LED (°C) 110110110110110
Humidity range (%) 10~90RH10~90RH10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45
Product Code MB054 SFRDMB036 SFRDMB22SFRDMB15SFRDMB08SFRD

20022006

MB08SFRD

8w , 600lm , beam angle 120 , Size 92×23.5



20022012

MB15SFRD

15w , 1050 lm , Beam angle 120 , Size 140×23.5



20022018

MB252SFRD

22w , 1540 lm , Beam angle 120 , Size 192×23.5



20052036

MB036SFRD

36w , 2880 lm , beam angle 120 , size 400.40



20052054

MB054SFRD

54w , 4320 lm , beam angle 120 , Size 600.4.
