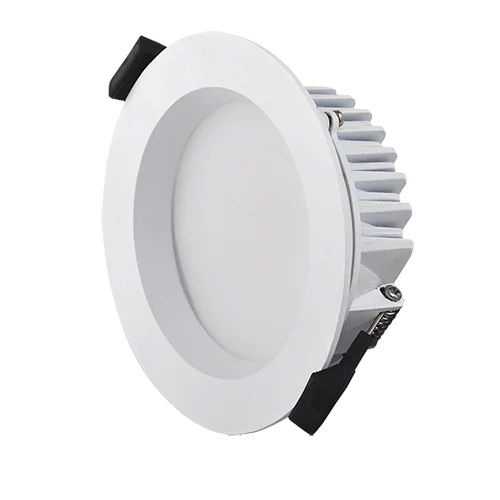

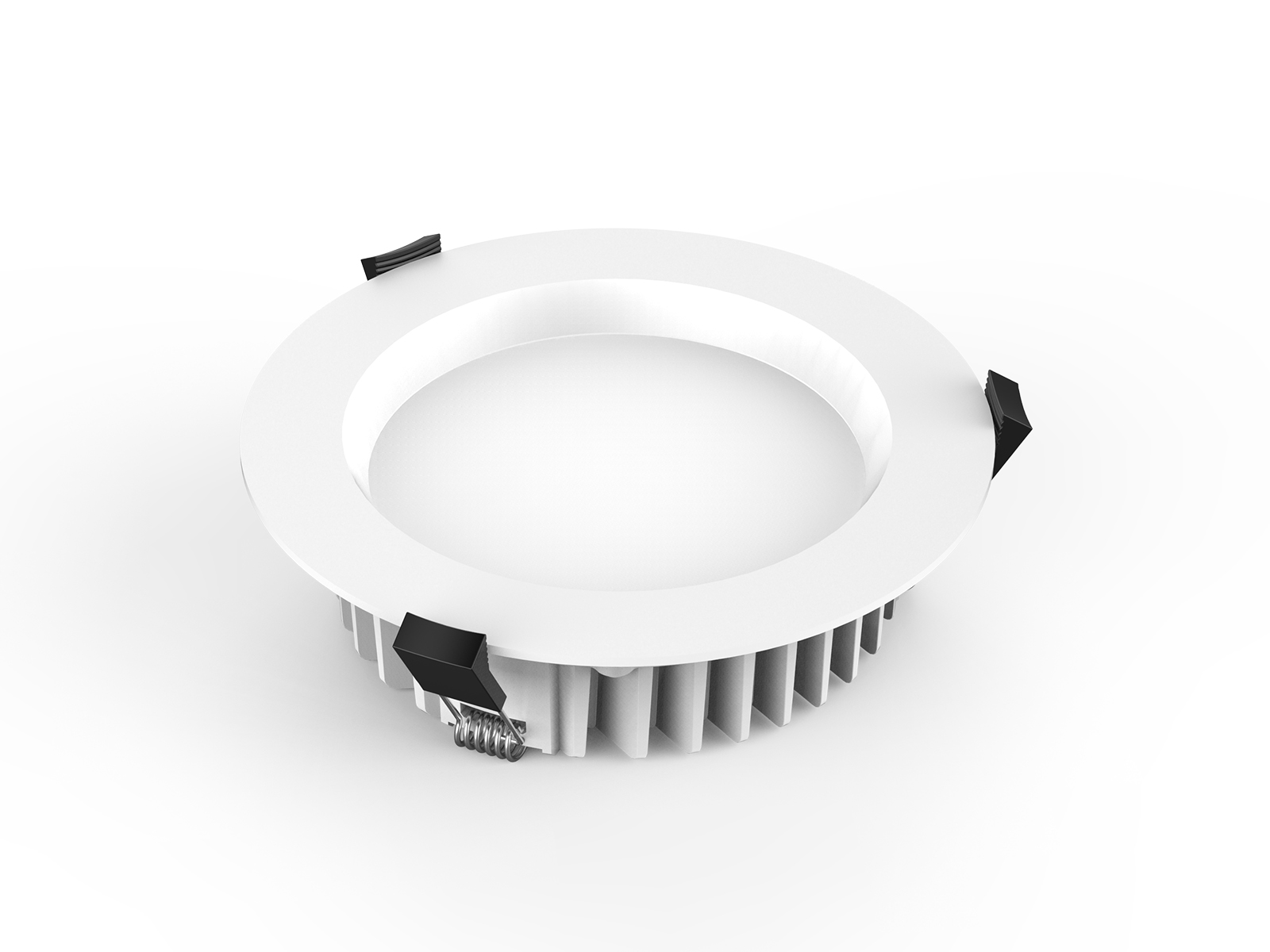

LOTEX (MBR008) / LOTUS (MBS020)

System input power (W) : 8 - 20 - 12

Light Source : -

Cut Size(mm) : 155 - 95 - 135

View Full Specifications
8W12W20W
System input power (W) 81220
Input voltage range (V-AC/Hz) 220~240/50~60220~240/50~60220~240/50~60
Power factor 0.610.690.74
LED module type ---
LED module structure ---
Light Source ---
Nominal luminous Flux (Lm) 64010501600
Nominal system luminous efficiency (Lm/W) ---
Number of LEDs (pcs) ---
Nominal color temperature (°K) ---
Color rendering index (Ra) 757575
Lumen maintenance factor at 1000 hours 98%98%98%
Lumen maintenance group at 6000 hours AAA
Light distribution angle (degrees) 120120120
Cut Size(mm) 95135155
Dimension(mm) 105*50145*50175*50
Material (PC) ---
Ingress Protection (IP) 202020
Weight (Kg) ---
Rated life in ambient temperature 25 °C 5000(hrs)5000(hrs)5000(hrs)
Rated life in ambient temperature 45 °C 5000(hrs)5000(hrs)5000(hrs)
Maximum junction temperature LED (°C) ---
Humidity range (%) 10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20~ +50-20~ +50-20~ +50
Product Code MBRO08MBRO12MBRO20

MBRO 08 / MBSO 08

8w , 640 lm , Beam angle 120

Round frame 95 , Size 105.50

Square Frame 95.954 , Size 110.110



MBRO 12 / MBSO 12

12w , 960 lm , Beam angle 120

Round frame 135 , Size 145.50

Square Frame 155.155 , Size 180.180.50



MBRO 20 / MBSO 20

20w , 1600 lm , Beam Angle 120

Round frame 155 , Size 170.50

Square frame 155.155 , Size 180.180.50
