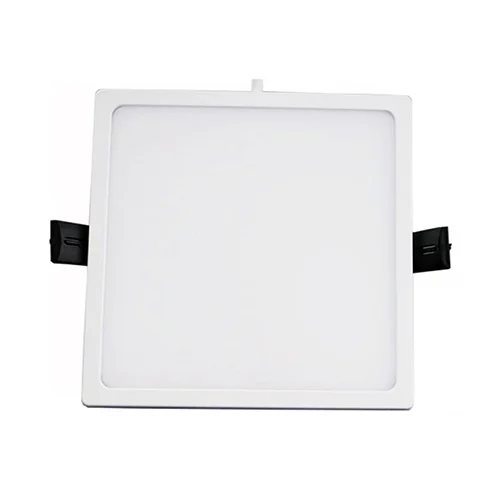

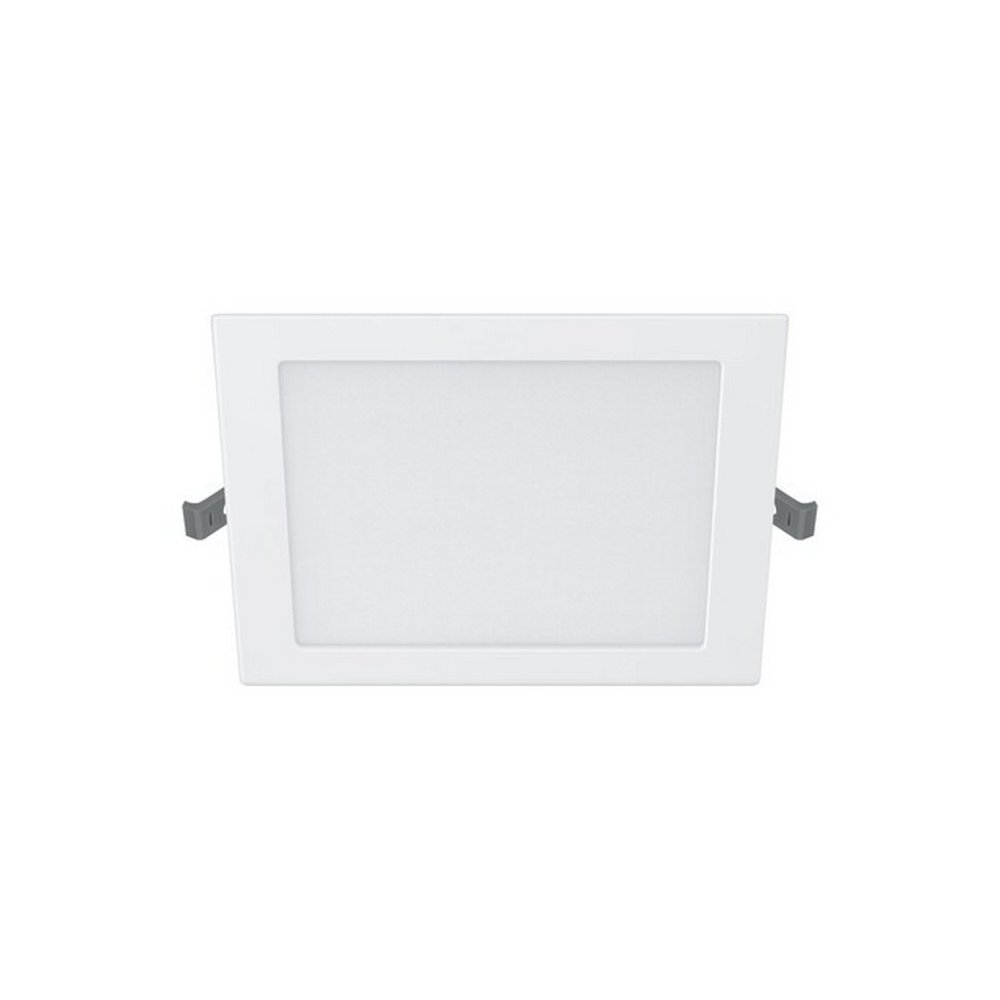

LUXIA (MB-ESQ)

System input power (W) : 8 - 15 - 20 - 24

Light Source : -

Cut Size(mm) : 80 - 130 - 155 - 195

View Full Specifications
8W15W20W24W
System input power (W) 8152024
Input voltage range (V-AC/Hz) 220~240/50~60220~240/50~60220~240/50~60220~240/50~60
Power factor 0.630.680.760.82
LED module type ----
LED module structure ----
Light Source ----
Nominal luminous Flux (Lm) 640120016001920
Nominal system luminous efficiency (Lm/W) ----
Number of LEDs (pcs) ----
Nominal color temperature (°K) ----
Color rendering index (Ra) 80808080
Lumen maintenance factor at 1000 hours 98%98%98%98%
Lumen maintenance group at 6000 hours AAAA
Cut Size(mm) 80130155195
Dimension(mm) 90*90*25145*145*25220*220*30220*220*30
Light distribution angle (degrees) 120120120120
Material (PC) ----
Ingress Protection (IP) 42424242
Weight (Kg) ----
Rated life in ambient temperature 25 °C 5000(hrs)5000(hrs)5000(hrs)5000(hrs)
Rated life in ambient temperature 45 °C 5000(hrs)5000(hrs)5000(hrs)5000(hrs)
Maximum junction temperature LED (°C) ----
Humidity range (%) 10~90RH10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20~ +50-20~ +50-20~ +50-20~ +50
Product Code MB008ESQMB015ESQMB020ESQMB024ESQ
