 4W±10%/M
| 4W±10%/M
| 4W±10%/M
| 4W±10%/M
| 4W±10%/M
| 4W±10%/M
| 4W±10%/M
| |
|---|---|---|---|---|---|---|---|
| System input power (W) | 4W±10%/M | 4W±10%/M | 4W±10%/M | 4W±10%/M | 4W±10%/M | 4W±10%/M | 4W±10%/M |
| Nominal luminous Flux (Lm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Lumen Maintenance | L70B10 | L70B10 | L70B10 | L70B10 | L70B10 | L70B10 | L70B10 |
| Power factor | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Color rendering index (Ra) | 70 | 70 | 70 | N/A | N/A | N/A | N/A |
| Light distribution angle (degrees) | 120 | 120 | 120 | 120 | 120 | 120 | 120 |

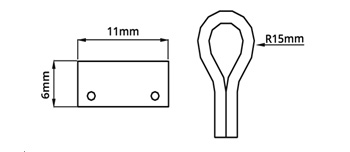

| Dimension(mm) | 11*6 | 11*6 | 11*6 | 11*6 | 11*6 | 11*6 | 11*6 |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Color Temperature | Warm-Cool-Natural-RGB | Warm-Cool-Natural-RGB | Warm-Cool-Natural-RGB | Warm-Cool-Natural-RGB | Warm-Cool-Natural-RGB | Warm-Cool-Natural-RGB | Warm-Cool-Natural-RGB |
| Input voltage range (V-AC/Hz) | AC220V | AC220V | AC220V | AC220V | AC220V | AC220V | AC220V |
| LED Module Life Time | 5000(h) | 5000(h) | 5000(h) | 5000(h) | 5000(h) | 5000(h) | 5000(h) |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH | 10~90RH | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | MB283560P | MB283560P | MB283560P | MB283560P | MB283560P | MB283560P | MB283560P |

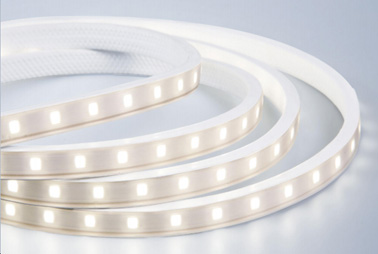

chip 2835 , 60 led , power consume 4w per meter , 250 lm per meter , size 11.6 , IP65
Color : WW , DL , Yellow , Orange ,
