GAMMA ( MBFL )
System input power (W) : 50W±10% - 100W±10% - 70W±10% - 200W±10%
Light Source : SMD2835
 50W
|  70W |  100W
|  200W
| |
|---|---|---|---|---|
| System input power (W) | 50W±10% | 70W±10% | 100W±10% | 200W±10% |
| Input voltage range (V-AC/Hz) | AC185-265V | AC85-160V | AC185-265V | AC85-160V |
| Power factor | 0.9 | 0.9 | 0.9 | 0.9 |
| LED module type | SMD | SMD | SMD | SMD |
| LED module structure | 1 chip | 1 chip | 1 chip | 1 chip |
| Light Source | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
| Nominal luminous Flux (Lm) | 3000 | 4200 | 3000 | 3600 |
| Nominal system luminous efficiency (Lm/W) | 60 | 60 | 55 | 55 |
| Number of LEDs (pcs) | 90 | 120 | 112 | 196 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 70 | 70 | 70 | |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A | A |
| Light distribution angle (degrees) | 120 | 120 | 24 | 24 |

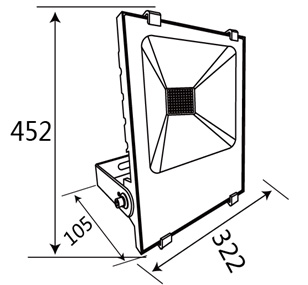

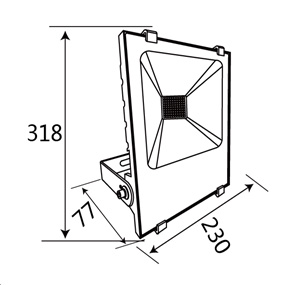

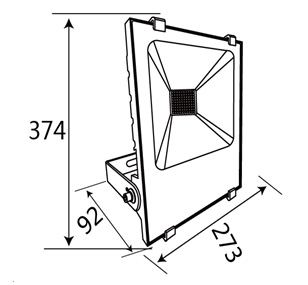

| Dimension(mm) | 318*230*77 | 374*273*92 | 452*322*105 | 495*362*130 |
| Material (PC) | Aluminum+Glass | Aluminum+Glass | Aluminum+Glass | Aluminum+Glass |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 |
| Weight (Kg) | 2.65 | 2.97 | 2.97 | 3 |
| Rated life in ambient temperature 25 °C | 30000 (hrs) | 30000 (hrs) | 30000 (hrs) | 30000 (hrs) |
| Rated life in ambient temperature 45 °C | 20000 (hrs) | 20000 (hrs) | 20000 (hrs) | 20000 (hrs) |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | MB-FL-50W | MB-FL-70W | MB-FL-100W | MB-FL-200W |
