LOGAN
System input power (W) : 30 - 10 - 5 - 20
Light Source : COB LED
Cut Size(mm) : 80*80 - 90*90 - 190*190 - 270*90
| 5W |  10W |  20W |  30W | |
|---|---|---|---|---|
| System input power (W) | 5 | 10 | 20 | 30 |
| Input voltage range (V-AC/Hz) | 220-240/50-60 | 220-240/50-60 | 220-240/50-60 | 220-240/50-60 |
| Power factor | 0.87 | 0.87 | 0.87 | 0.87 |
| LED module type | With separate ballast | With separate ballast | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated | Integrated | Integrated |
| Light Source | COB LED | COB LED | COB LED | COB LED |
| Nominal luminous Flux (Lm) | 450 | 750 | 1500 | 3000 |
| Nominal system luminous efficiency (Lm/W) | 75 | 75 | 75 | 75 |
| Number of LEDs (pcs) | 1 | 1 | 2 | 3 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 85 | 85 | 85 | 85 |
| Lumen maintenance factor at 1000 hours | 97% | 97% | 97% | 97% |
| Lumen maintenance group at 6000 hours | A | A | A | A |
| Light distribution angle (degrees) | 36 | 36 | 36 | 36 |
| Cut Size(mm) | 80*80 | 90*90 | 190*190 | 270*90 |
| Dimension(mm) | 90*90*75 | 100*100*85 | 200*100*75 | 300*100*75 |
| Material (PC) | aluminum +PC | aluminum +PC | aluminum +PC | aluminum +PC |
| Ingress Protection (IP) | 20 | 20 | 20 | 20 |
| Weight (Kg) | 0.271 | 0.271 | 0.5725 | 0.835 |
| Rated life in ambient temperature 25 °C | 40000 (hrs) | 40000 (hrs) | 40000 (hrs) | 40000 (hrs) |
| Rated life in ambient temperature 45 °C | 20000 (hrs) | 20000 (hrs) | 20000 (hrs) | 20000 (hrs) |
| Maximum junction temperature LED (°C) | 125 | 125 | 125 | 125 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20-50℃ | -20-50℃ | -20-50℃ | -20-50℃ |
| Product Code | 10401005 | 10401010 | 10401020 | 10401030 |
High Performance COB down light

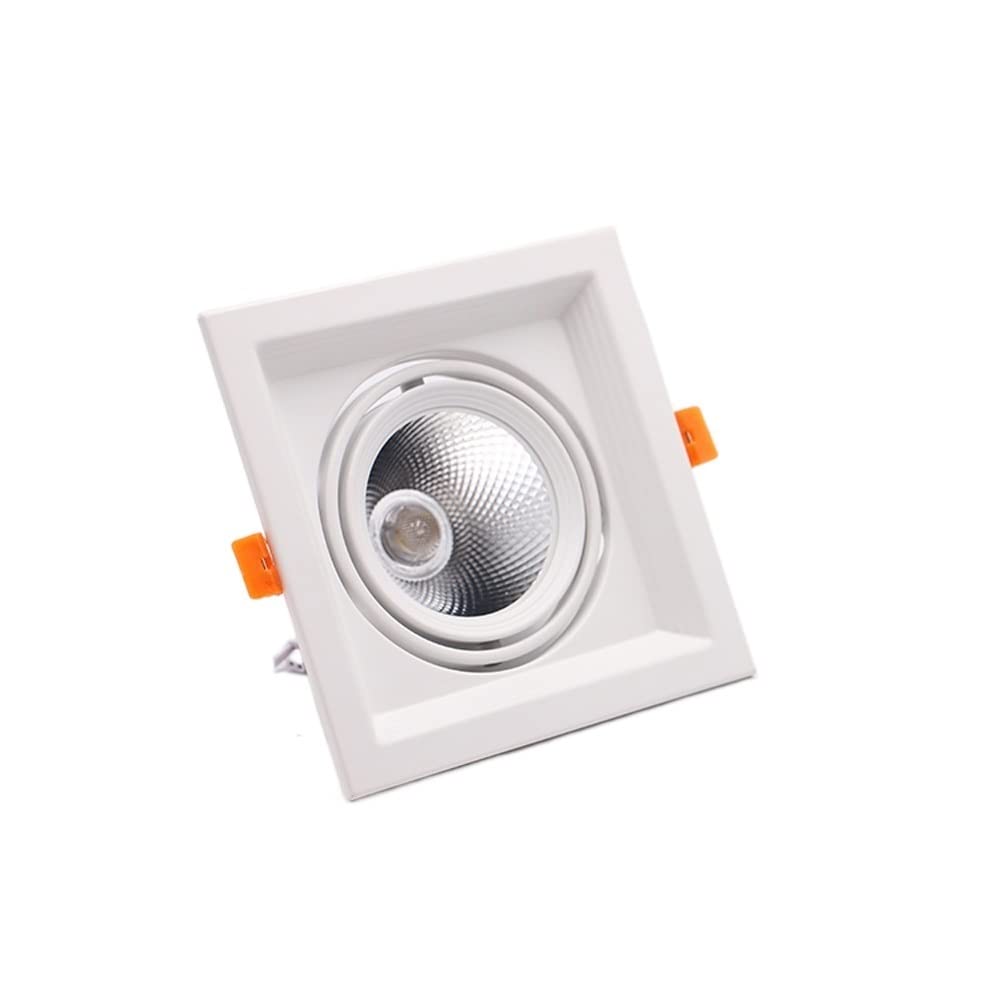

5w MBD005 10291005
450 lm , Beam angle 120 , frame 80.80 / Size 90.90.75
10w 10401010
750 lm , beam Angle 36 , frame size 100.100.100

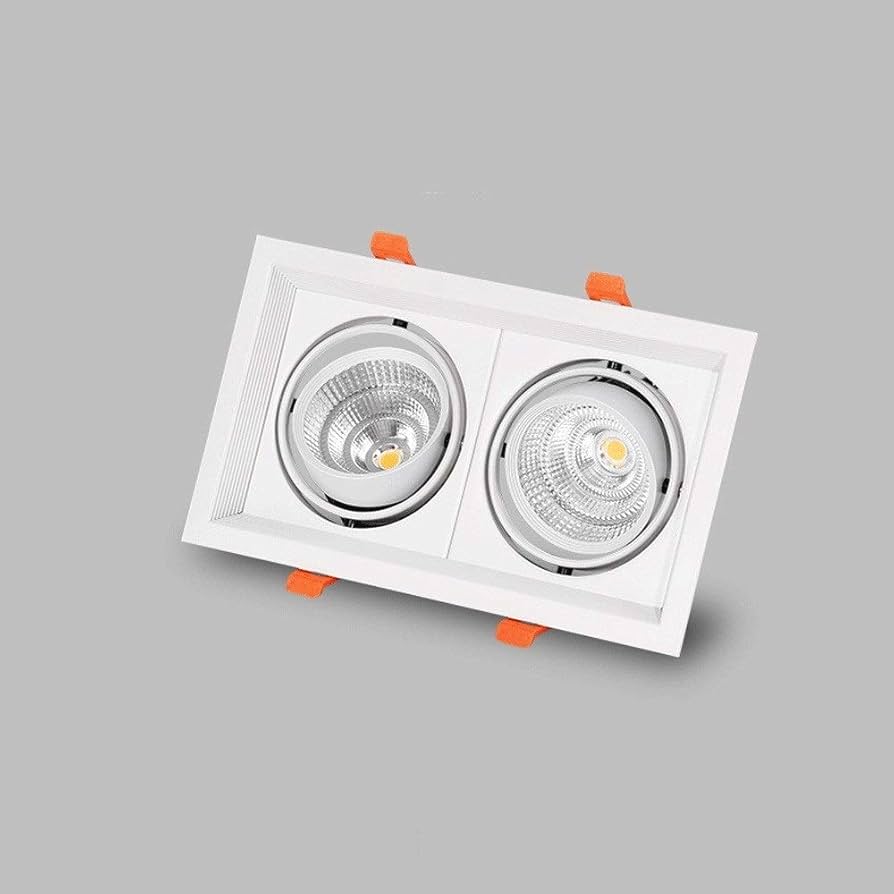

20w 10401020
1500 lm , beam angle 36 , frame 190.100 , Size 200.110.75

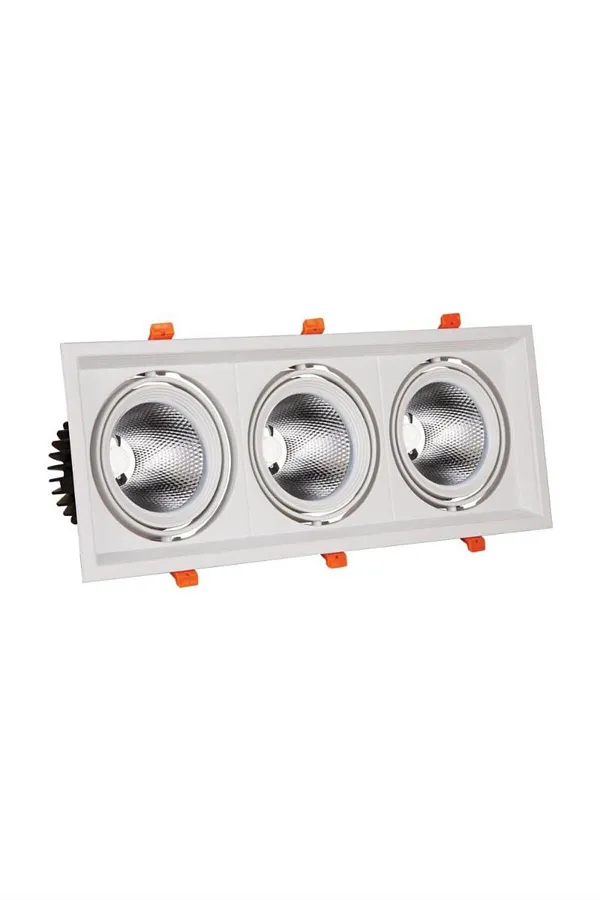

30w 10401030
3000 lm , beam angle 36 , frame 270.100 , Size 285.110.75
Color Temp : 4000K
