CALLISTO ( MB005 HB259 )
System input power (W) : 10 - 5
Light Source : COB LED
 5W |  10W | |
|---|---|---|
| System input power (W) | 5 | 10 |
| Input voltage range (V-AC/Hz) | 220-240/50-60 | 220-240/50-60 |
| Power factor | 0.5 | 0.5 |
| LED module type | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated |
| Light Source | COB LED | COB LED |
| Nominal luminous Flux (Lm) | 350 | 700 |
| Nominal system luminous efficiency (Lm/W) | 70 | 70 |
| Number of LEDs (pcs) | 1 | 1 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 70 | 70 |
| Lumen maintenance factor at 1000 hours | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A |
| Light distribution angle (degrees) | 45 | 45 |

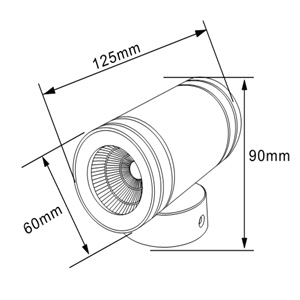

| Dimension(mm) | 60*80*90 | 60*125*90 |
| Material (PC) | Aluminum | Aluminum |
| Ingress Protection (IP) | 65 | 65 |
| Weight (Kg) | 0.216 | 0.44 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 30000(hrs) | 30000(hrs) |
| Maximum junction temperature LED (°C) | 125 | 125 |
| Humidity range (%) | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 |
| Product Code | MB005-HB259 IP65 | MB205-HB259 IP65 |
5w , one side , 350 lm , beam angle 45 , size 60.80.90 , IP65 , Black body , COB
2x5w , Two side , 700lm , beam angle 45 , Size 60.125.90 , IP65 , black Body , COB
