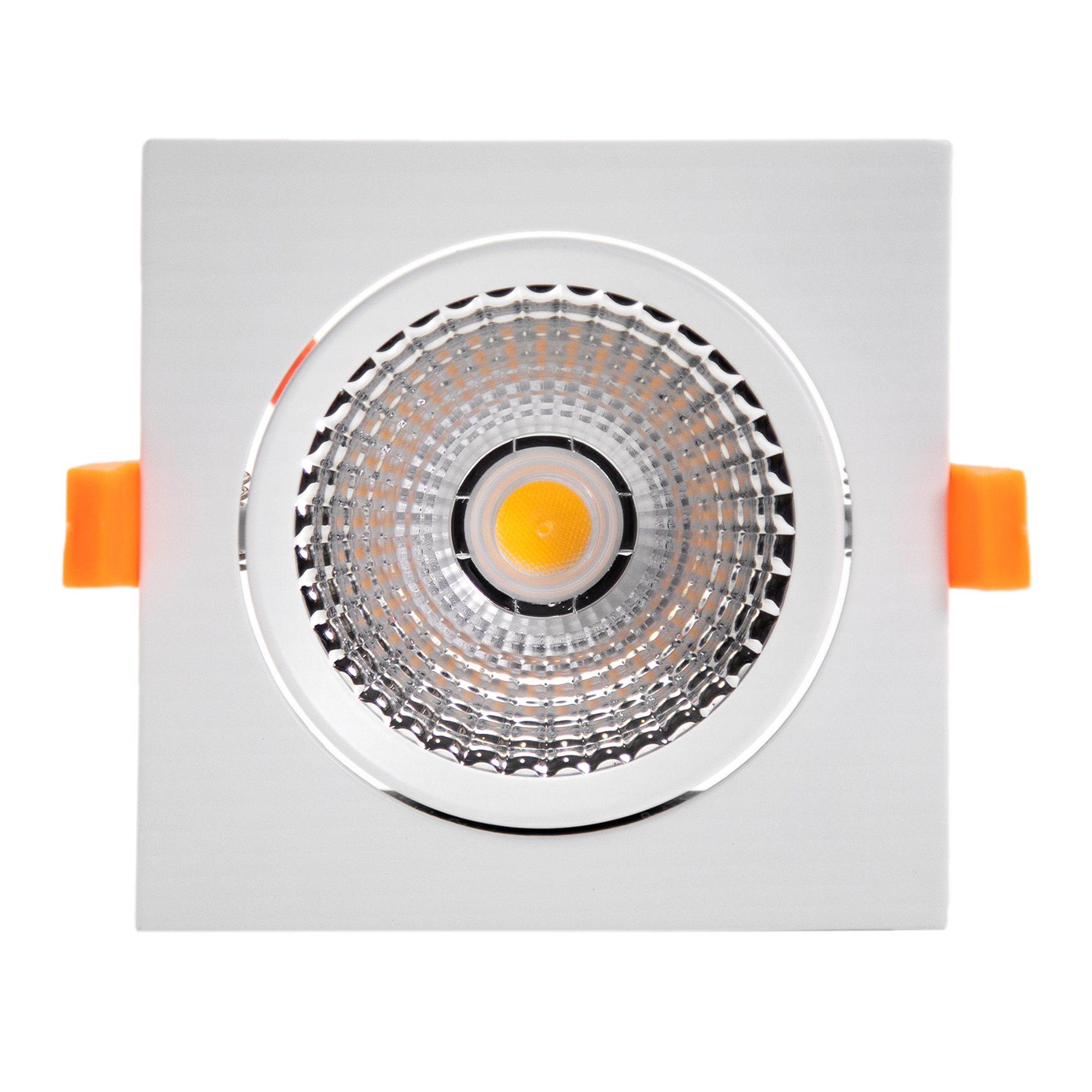

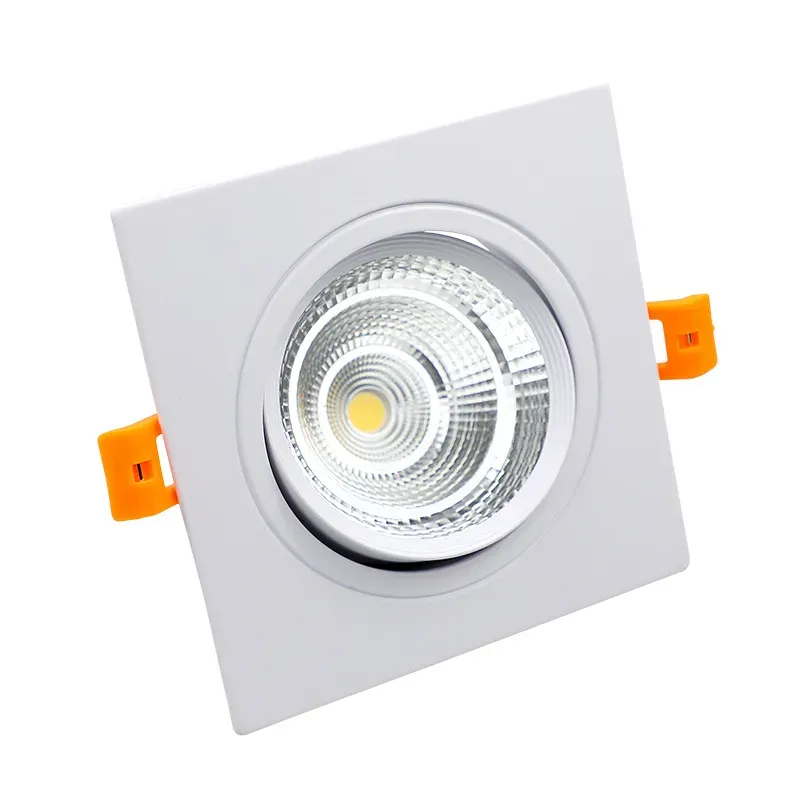

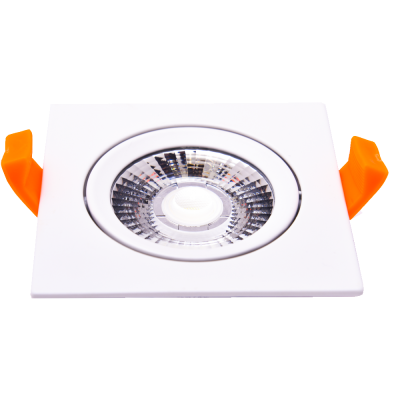

ARAMIS (MB 36SQ)
System input power (W) : 9w - 6w - 20w
Light Source : COB LED
Cut Size(mm) : 70 - 75 - 105
 3W |  9W |  20W | |
|---|---|---|---|
| System input power (W) | 6 | 9 | 20 |
| Input voltage range (V-AC/Hz) | 220-240/50-60 | 220-240/50-60 | 220-240/50-60 |
| Power factor | 0.78 | 0.78 | 0.78 |
| LED module type | With separate ballast | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated | Integrated |
| Light Source | COB LED | COB LED | COB LED |
| Nominal luminous Flux (Lm) | 420 | 630 | 1400 |
| Nominal system luminous efficiency (Lm/W) | 70 | 70 | 70 |
| Number of LEDs (pcs) | 1 | 1 | 1 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 90 | 90 | 90 |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A |
| Light distribution angle (degrees) | 30 | 30 | 45 |
| Cut Size(mm) | 70 | 75 | 105 |
| Dimension(mm) | 82*82*H20 | 87*87*H21 | 116*116*H32.5 |
| Material (PC) | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | 20 | 20 | 20 |
| Weight (Kg) | 0.125 | 0.15 | 0.3 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 30000(hrs) | 30000(hrs) | 30000(hrs) |
| Maximum junction temperature LED (°C) | 125 | 125 | 125 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | MB006-36 SQ | MB009-36 SQ | MB020-36 SQ |
Adjustable angle / Designed to use for round holes
MB006 36SQ , 6w , 450 lm , beam angle 30 , Cut size 70 , Size 82.82.20 , COB
MB009 36SQ , 9w , 700 lm , Beam angle 30 , Cut Size 75 , Size 87.87.21 , COB
MB020 36SQ , 20w , 1500 lm , Beam angle 45 , Cut size 105 , Size 116.116.33 , COB
Color Temp : 3000K-6000K
