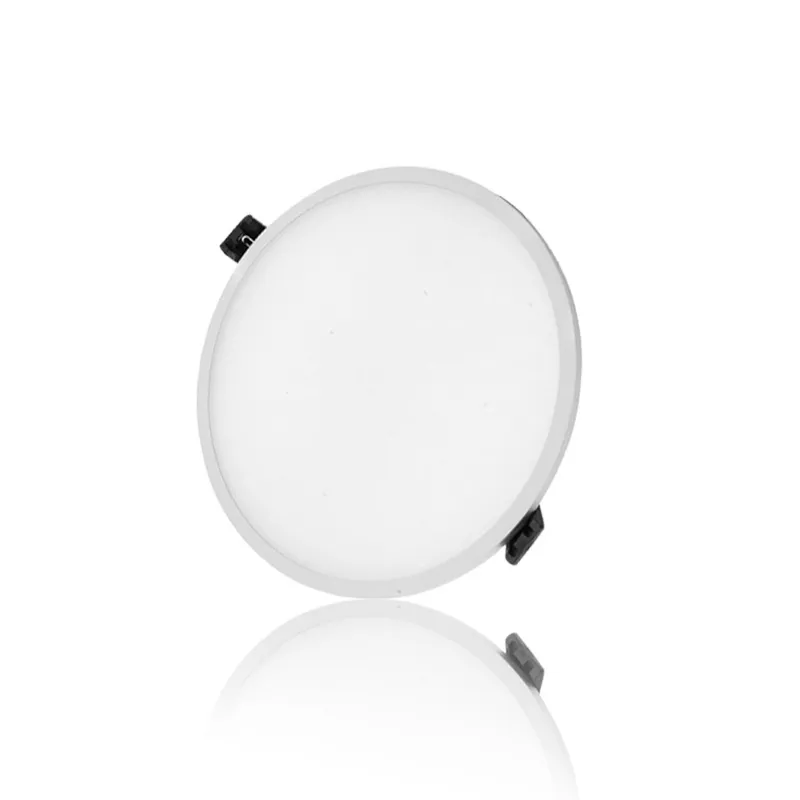

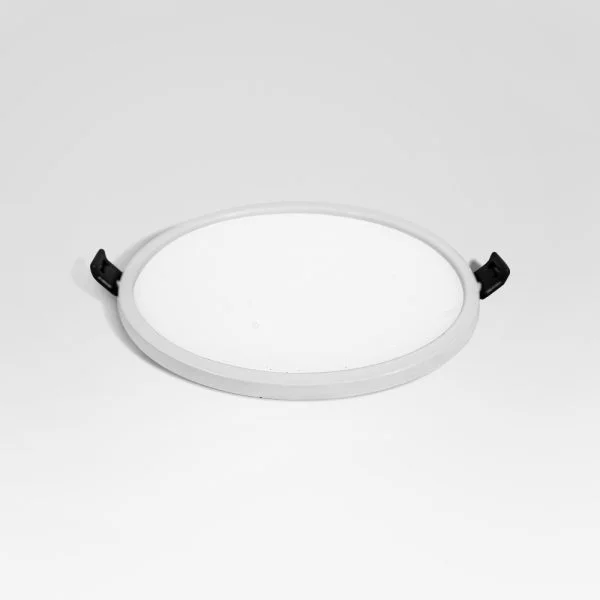

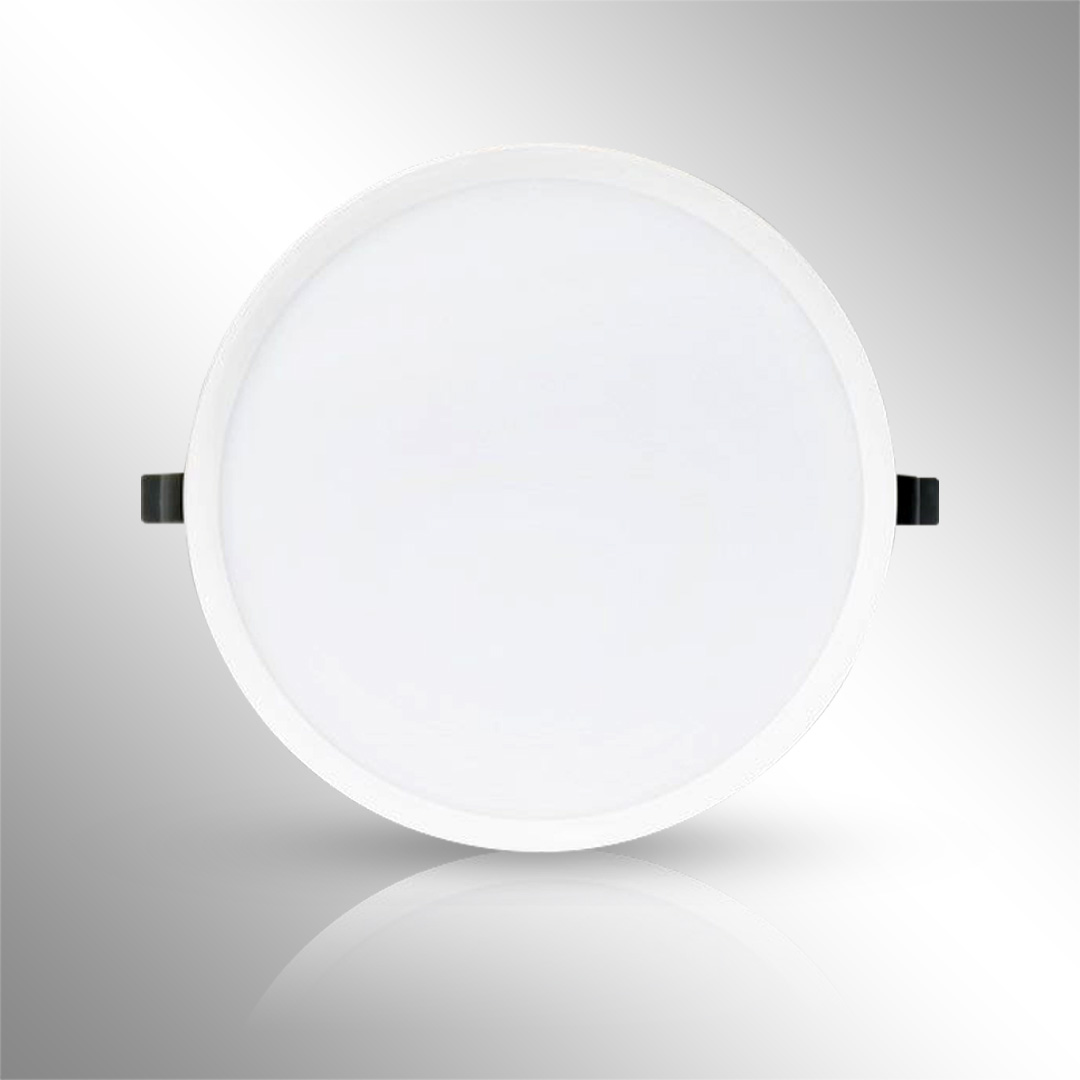

LUMIA ( MB ERD )
System input power (W) : 8 - 15 - 20 - 24
Light Source : SMD
Cut Size(mm) : 75*75 Φ75 - 130*130 Φ130 - 155*155 Φ155 - 195*195 Φ195
| 8W | 15W | 20W | 24W | |
|---|---|---|---|---|
| System input power (W) | 8 | 15 | 20 | 24 |
| Input voltage range (V-AC/Hz) | 160-265/50-60 | 160-265/50-60 | 160-265/50-60 | 160-265/50-60 |
| Power factor | 0.9 | 0.9 | 0.9 | 0.9 |
| LED module type | LED PANEL LIGHT | LED PANEL LIGHT | LED PANEL LIGHT | LED PANEL LIGHT |
| LED module structure | Integrated | Integrated | Integrated | Integrated |
| Light Source | SMD | SMD | SMD | SMD |
| Nominal luminous Flux (Lm) | 370lm | 1200lm | 1500lm | 2280lm |
| Nominal system luminous efficiency (Lm/W) | 40lm/w | 60LM/W | 70lm/w | 75lm/w |
| Number of LEDs (pcs) | 40 | 75 | 112 | 128 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 75 | 75 | 75 | 75 |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A | A |
| Light distribution angle (degrees) | 120 | 120 | 120 | 120 |
| Cut Size(mm) | 75*75 Φ75 | 130*130 Φ130 | 155*155 Φ155 | 195*195 Φ195 |
| Dimension(mm) | 90*90*25 Φ90*25 | 90*90*25 Φ90*25 | 170*170*28 Φ170*28 | 220*220*30 Φ220*30 |
| Material (PC) | Aluminum | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | 20 | 20 | 20 | 20 |
| Weight (Kg) | 0.15 | 0.23 | 0.32 | 0.4 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) |
| Maximum junction temperature LED (°C) | 125 | 125 | 125 | 125 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | MB008 ERD | MB015 ERD | MB020 ERD | MB024 ERD |
