| DIONE 10073002 | |
|---|---|
| System input power (W) | 2 |
| Input voltage range (V-AC/Hz) | 220~240/50~60 |
| Power factor | 0.5 |
| LED module type | Inner driver |
| LED module structure | SMD |
| Light Source | CREE XB-D |
| Nominal luminous Flux (Lm) | 120 |
| Nominal system luminous efficiency (Lm/W) | 80 |
| Number of LEDs (pcs) | 2 |
| Nominal color temperature (°K) | 3000K |
| Color rendering index (Ra) | 80 |
| Lumen maintenance factor at 1000 hours | 98% |
| Lumen maintenance group at 6000 hours | A |
| Light distribution angle (degrees) | 90 |

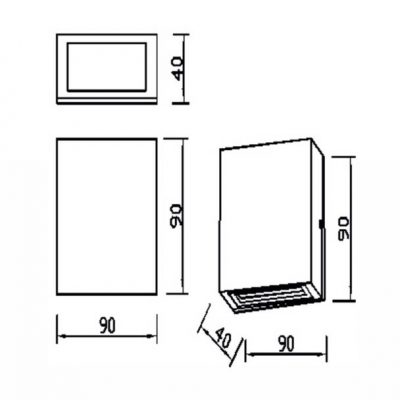

| Dimension(mm) | 90x90xH40 |
| Material (PC) | Aluminum |
| Ingress Protection (IP) | 54 |
| Weight (Kg) | 0.275 |
| Rated life in ambient temperature 25 °C | 20000(hrs) |
| Rated life in ambient temperature 45 °C | 15000(hrs) |
| Maximum junction temperature LED (°C) | 60 |
| Humidity range (%) | 10~90RH |
| Ambient temperature range (°C) | -20~ +50 |
| Product Code | MB10073002 BK |
2w , 120 lm , size 90.90.40 , IP54
