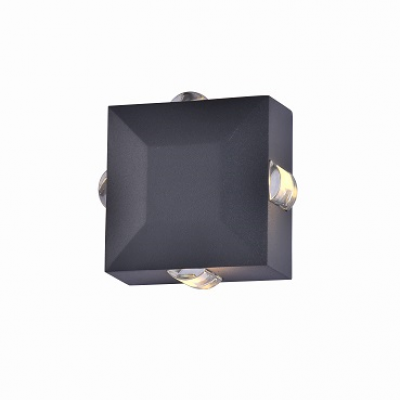

AMETRINE 10293004

System input power (W) : 4

Light Source : BRIDGELUX High-Power

View Full Specifications
AMETRINE 10293004
System input power (W) 4
Input voltage range (V-AC/Hz) 220~240/50~60
Power factor 0.5
LED module type Inner driver
LED module structure High-Power
Light Source BRIDGELUX High-Power
Nominal luminous Flux (Lm) 320
Nominal system luminous efficiency (Lm/W) 80
Number of LEDs (pcs) 4
Nominal color temperature (°K) 3000K
Color rendering index (Ra) 80
Lumen maintenance factor at 1000 hours 98%
Lumen maintenance group at 6000 hours A
Light distribution angle (degrees) 10

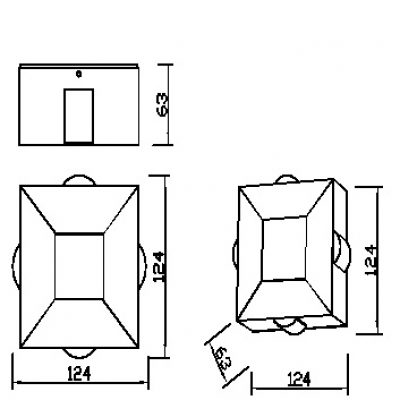

Dimension(mm) 124x124xH63
Material (PC) Aluminum
Ingress Protection (IP) 54
Weight (Kg) 0.55
Rated life in ambient temperature 25 °C 20000(hrs)
Rated life in ambient temperature 45 °C 15000(hrs)
Maximum junction temperature LED (°C) 60
Humidity range (%) 10~90RH
Ambient temperature range (°C) -20~ +50
Product Code 10293004

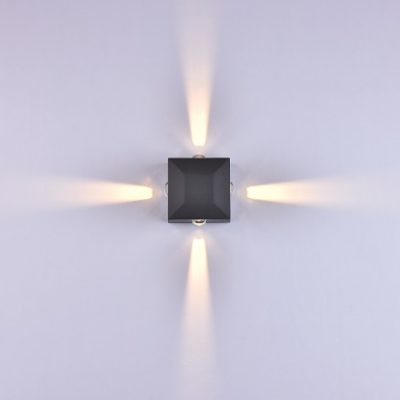

4w , 4 side , 320 lm , spot shooting , Size 124.124.45 , IP54 , Beam Angle 10
