NARA (MB NRA)

System input power (W) : 30 - 10 - 7 - 16 - 25 - 42

Light Source : SMD

Cut Size(mm) : 160 - 75 - 95 - 140 - 190

View Full Specifications
7W10W16W25W30W42W
System input power (W) 71016253042
Input voltage range (V-AC/Hz) 85~265/50~6085~265/50~6085~265/50~6085~265/50~6085~265/50~6085~265/50~60
Power factor 0.60.60.60.60.60.6
LED module type LED PANEL LIGHTLED PANEL LIGHTLED PANEL LIGHTLED PANEL LIGHTLED PANEL LIGHTLED PANEL LIGHT
LED module structure IntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
Light Source SMDSMDSMDSMDSMDSMD
Nominal luminous Flux (Lm) 450lm550lm1050lm1780lm2500lm3500lm
Nominal system luminous efficiency (Lm/W) 55lm/w50LM/W60LM/W73lm/w76lm/w80lm/w
Number of LEDs (pcs) 355080125150210
Nominal color temperature (°K) 3000-60003000-60003000-60003000-60003000-60003000-6000
Color rendering index (Ra) 757575757575
Lumen maintenance factor at 1000 hours 98%98%98%98%98%98%
Lumen maintenance group at 6000 hours AAAAAA
Light distribution angle (degrees) 120120120120120120
Cut Size(mm) 757595140160190

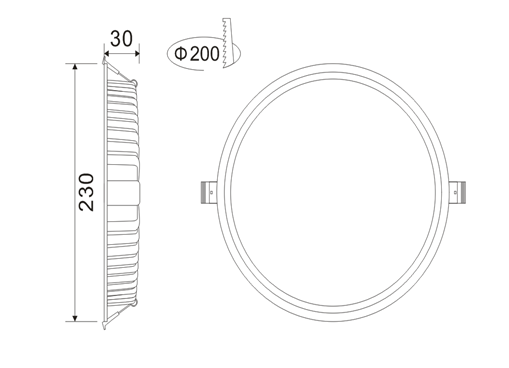

Dimension(mm) Φ100*30Φ100*30Φ120*30Φ170*30Φ200*30Φ230*30
Material (PC) AluminumAluminumAluminumAluminumAluminumAluminum
Ingress Protection (IP) 202020202020
Weight (Kg) 0.10.10.1350.2250.3250.415
Rated life in ambient temperature 25 °C 50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)50000 (hrs)
Rated life in ambient temperature 45 °C 30000(hrs)30000(hrs)30000(hrs)30000(hrs)30000(hrs)30000(hrs)
Maximum junction temperature LED (°C) 125125125125125125
Humidity range (%) 10~90RH10~90RH10~90RH10~90RH10~90RH10~90RH
Ambient temperature range (°C) -20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45-20 ~ +45
Product Code MB NRA007MB NRA10MB NRA 16MB NRA 25MB NRA 30MB NRA 42

MBNRA 07

7w , 525lm , cut size 75 , size 100.30



MBNRA 07 2CO

7w , 560 lm , cut size 75 , size 100.35

Adjustable to fix desired color temp



MBNRA 10

10w , 750lm , cut size 75 , Size 100.35



MBNRA 10 2co

10w , 750lm , cut size 75 , Size 100.35

Adjustable to fix desired color temp



MBNRA 16w

16w , 1200 lm , cut size 95 , size 120.30



MBNRA 25w

25w , 1875 lm , cut size 140 , size 170.30



MBNRA 30w

30w , 2250 lm , cut size 160 , size 200.30

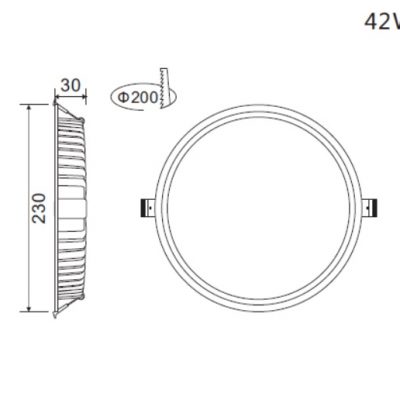

MBNRA 42w

42w , 3150 lm , cut size 190 , size 230.30

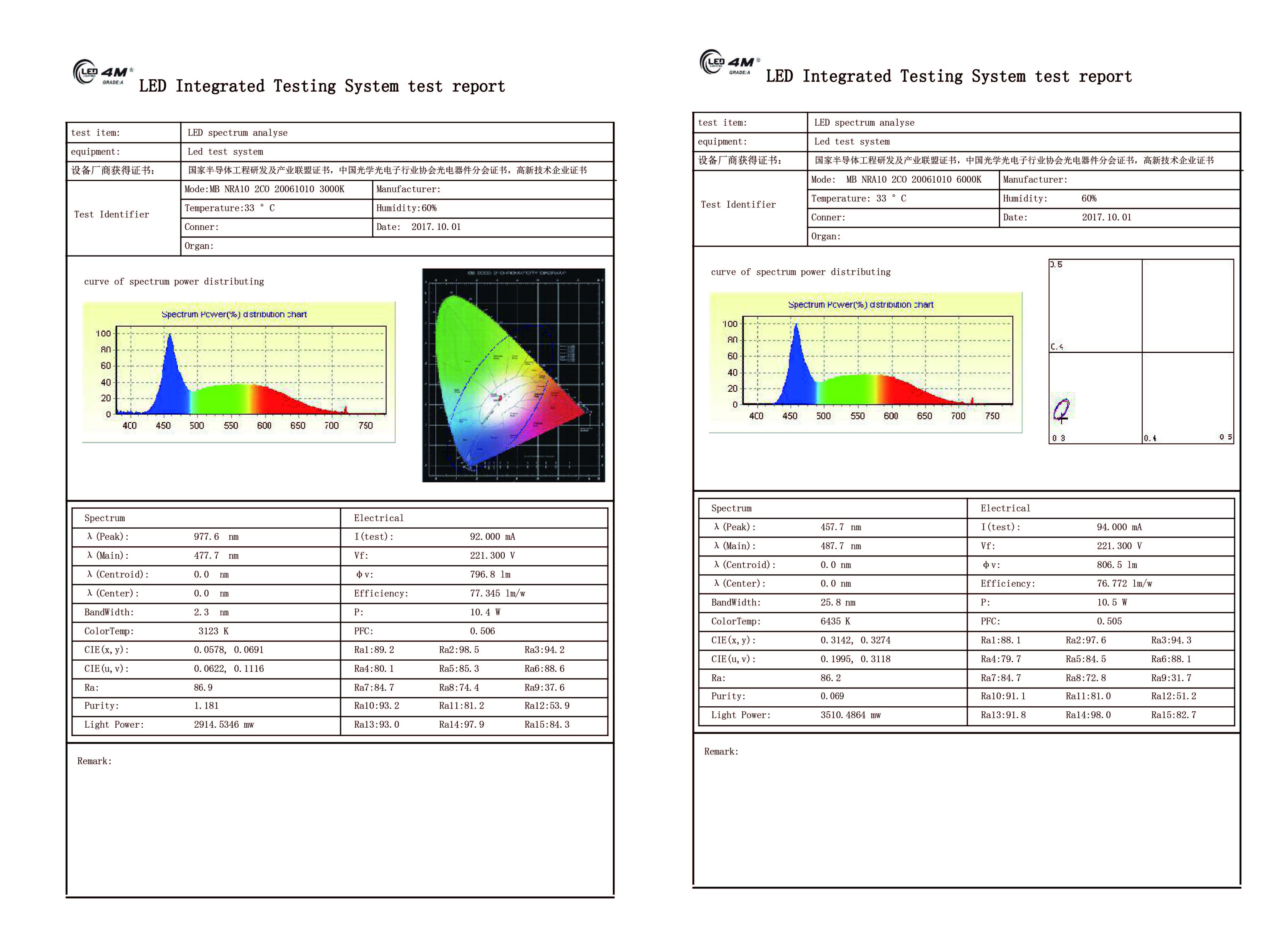

Test Report 7wDownload Now
Test Report 10wDownload Now
Test Report 10w 2 colorDownload Now
Test Report 16wDownload Now
Test Report 25wDownload Now
Test Report 30wDownload Now
Test Report 42wDownload Now
SpecificationDownload Now
